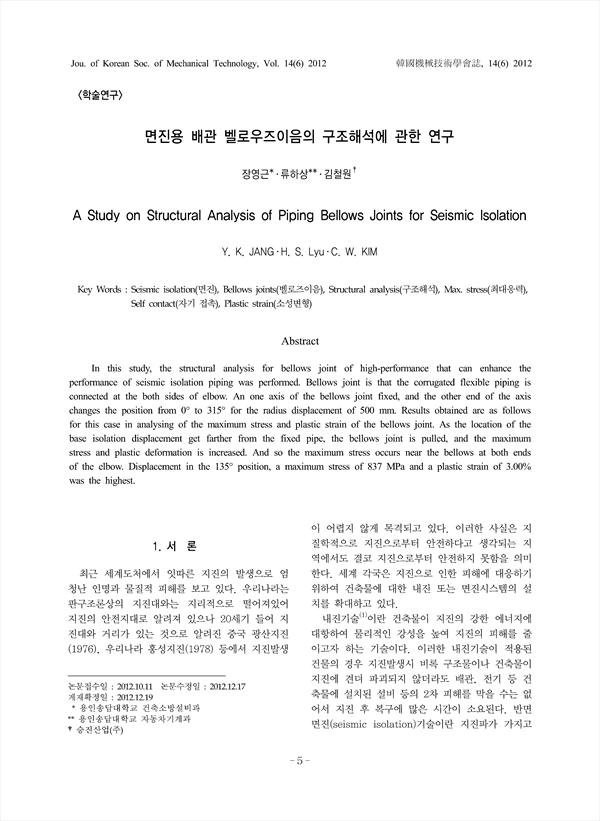

면진용 배관 벨로우즈이음의 구조해석에 관한 연구 A Study on Structural Analysis of Piping Bellows Joints for Seismic Isolation
pp.5-10
In this study, the structural analysis for bellows joint of high-performance that can enhance the performance of seismic isolation piping was performed. Bellows joint is that the corrugated flexible piping is connected at the both sides of elbow. An one axis of the bellows joint fixed, and the other end of the axis changes the position from 0° to 315° for the radius displacement of 500 mm. Results obtained are as follows for this case in analysing of the maximum stress and plastic strain of the bellows joint. As the location of the base isolation displacement get farther from the fixed pipe, the bellows joint is pulled, and the maximum stress and plastic deformation is increased. And so the maximum stress occurs near the bellows at both ends of the elbow. Displacement in the 135° position, a maximum stress of 837 MPa and a plastic strain of 3.00% was the highest.
