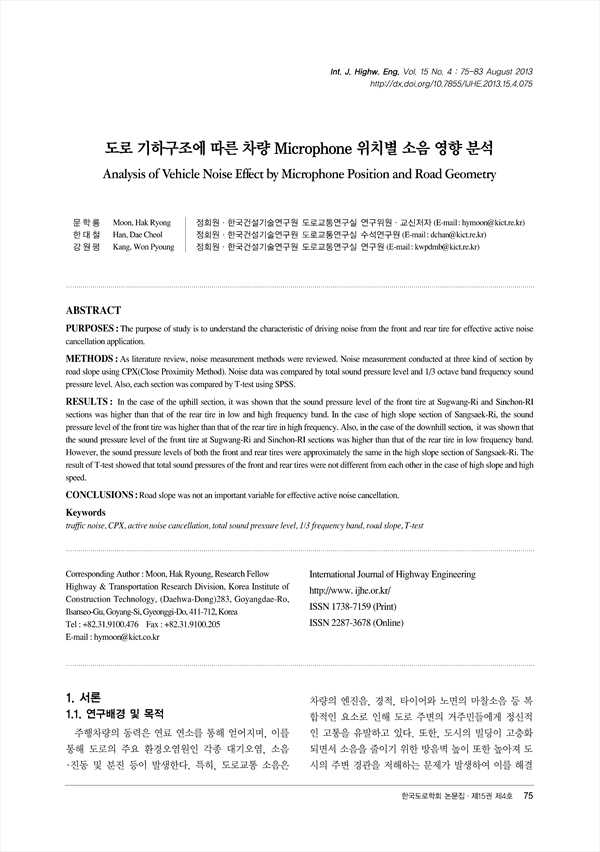

도로 기하구조에 따른 차량 Microphone 위치별 소음 영향 분석 Analysis of Vehicle Noise Effect by Microphone Position and Road Geometry

문학룡, 한대철, 강원평
  • 언어KOR
  • URLhttp://db.koreascholar.com/Article/Detail/250114
한국도로학회논문집
제15권 제4호 (2013.08)
pp.75-83
한국도로학회 (Korean Society of Road Engineers)
초록

PURPOSES: The purpose of study is to understand the characteristic of driving noise from the front and rear tire for effective active noise cancellation application. METHODS : As literature review, noise measurement methods were reviewed. Noise measurement conducted at three kind of section by road slope using CPX(Close Proximity Method). Noise data was compared by total sound pressure level and 1/3 octave band frequency sound pressure level. Also, each section was compared by T-test using SPSS. RESULTS : In the case of the uphill section, it was shown that the sound pressure level of the front tire at Sugwang-Ri and Sinchon-RI sections was higher than that of the rear tire in low and high frequency band. In the case of high slope section of Sangsaek-Ri, the sound pressure level of the front tire was higher than that of the rear tire in high frequency. Also, in the case of the downhill section, it was shown that the sound pressure level of the front tire at Sugwang-Ri and Sinchon-RI sections was higher than that of the rear tire in low frequency band. However, the sound pressure levels of both the front and rear tires were approximately the same in the high slope section of Sangsaek-Ri. The result of T-test showed that total sound pressures of the front and rear tires were not different from each other in the case of high slope and high speed. CONCLUSIONS: Road slope was not an important variable for effective active noise cancellation.

저자
  • 문학룡 | Moon, Hak Ryong
  • 한대철 | Han, Dae Cheol
  • 강원평 | Kang, Won Pyoung
