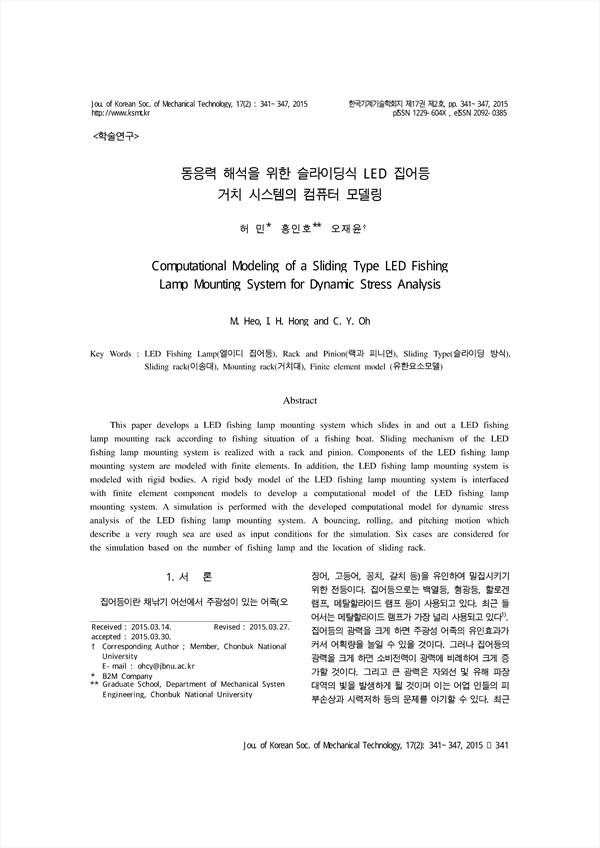

동응력 해석을 위한 슬라이딩식 LED 집어등 거치 시스템의 컴퓨터 모델링 Computational Modeling of a Sliding Type LED Fishing Lamp Mounting System for Dynamic Stress Analysis

허민, 홍인호, 오재윤
  • 언어KOR
  • URLhttp://db.koreascholar.com/Article/Detail/298862
PDF 원문보기
한국기계기술학회지 (韓國機械技術學會誌)
제17권 제2호 (2015.04)
pp.341-347
한국기계기술학회 (Korean Society of Mechanical Technology)
초록

This paper develops a LED fishing lamp mounting system which slides in and out a LED fishing lamp mounting rack according to fishing situation of a fishing boat. Sliding mechanism of the LED fishing lamp mounting system is realized with a rack and pinion. Components of the LED fishing lamp mounting system are modeled with finite elements. In addition, the LED fishing lamp mounting system is modeled with rigid bodies. A rigid body model of the LED fishing lamp mounting system is interfaced with finite element component models to develop a computational model of the LED fishing lamp mounting system. A simulation is performed with the developed computational model for dynamic stress analysis of the LED fishing lamp mounting system. A bouncing, rolling, and pitching motion which describe a very rough sea are used as input conditions for the simulation. Six cases are considered for the simulation based on the number of fishing lamp and the location of sliding rack.

키워드
LED Fishing Lamp엘이디 집어등Rack and Pinion랙과 피니언Sliding Type슬라이딩 방식Sliding rack이송대Mounting rack거치대Finite element model유한요소모델
목차
1. 서 론
 2. 집어등 거치 시스템
 3. 집어등 거치 시스템의 유한요소 모델링
 4. 집어등 거치 시스템의 동응력 해석을 위한 컴퓨터 모델의 개발
 5. 동응력 해석을 위한 모의시험
 6. 결 론
 References
저자
  • 허민(B2M Company) | M . H eo
  • 홍인호(Graduate School, Department of Mechanical System Engineering, Chonbuk National University) | I. H. Hong
  • 오재윤(Member, Chonbuk National University) | C. Y. Oh Corresponding author
