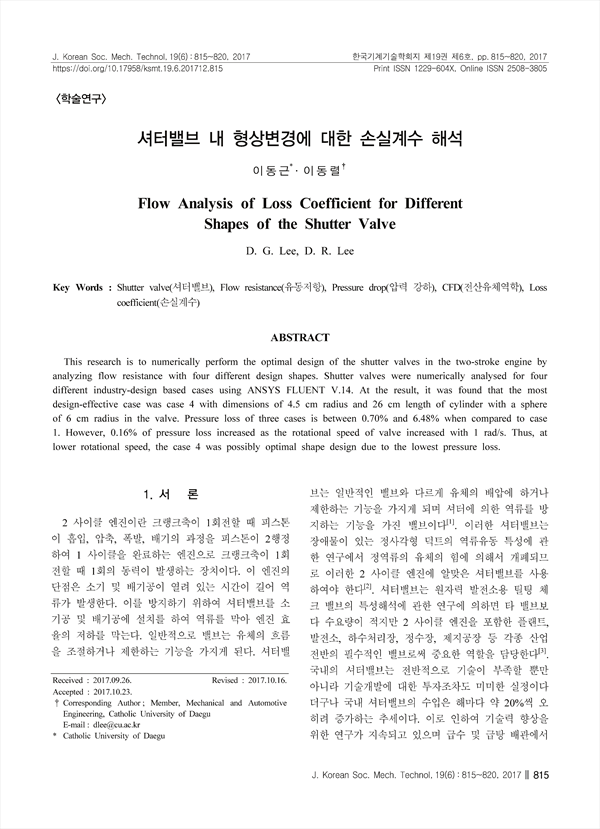

셔터밸브 내 형상변경에 대한 손실계수 해석 Flow Analysis of Loss Coefficient for Different Shapes of the Shutter Valve

이동근, 이동렬
  • 언어KOR
  • URLhttp://db.koreascholar.com/Article/Detail/342096
PDF 원문보기
한국기계기술학회지 (韓國機械技術學會誌)
제19권 제6호 (2017.12)
pp.815-820
한국기계기술학회 (Korean Society of Mechanical Technology)
초록

This research is to numerically perform the optimal design of the shutter valves in the two-stroke engine by analyzing flow resistance with four different design shapes. Shutter valves were numerically analysed for four different industry-design based cases using ANSYS FLUENT V.14. At the result, it was found that the most design-effective case was case 4 with dimensions of 4.5 cm radius and 26 cm length of cylinder with a sphere of 6 cm radius in the valve. Pressure loss of three cases is between 0.70% and 6.48% when compared to case 1. However, 0.16% of pressure loss increased as the rotational speed of valve increased with 1 rad/s. Thus, at lower rotational speed, the case 4 was possibly optimal shape design due to the lowest pressure loss.

키워드
Shutter valve(셔터밸브)Flow resistance(유동저항)Pressure drop(압력 강하)CFD(전산유체역학)Loss coefficient(손실계수)
목차
ABSTRACT
 1. 서론
 2. 수치 해석 방법
  2.1 설계 조건
  2.2 격자생성
 3. 결과 및 고찰
 4. 결론
 References
저자
  • 이동근(Catholic University of Daegu) | D. G. Lee
  • 이동렬(Mechanical and Automotive Engineering, Catholic University of Daegu) | D. R. Lee Corresponding Author
