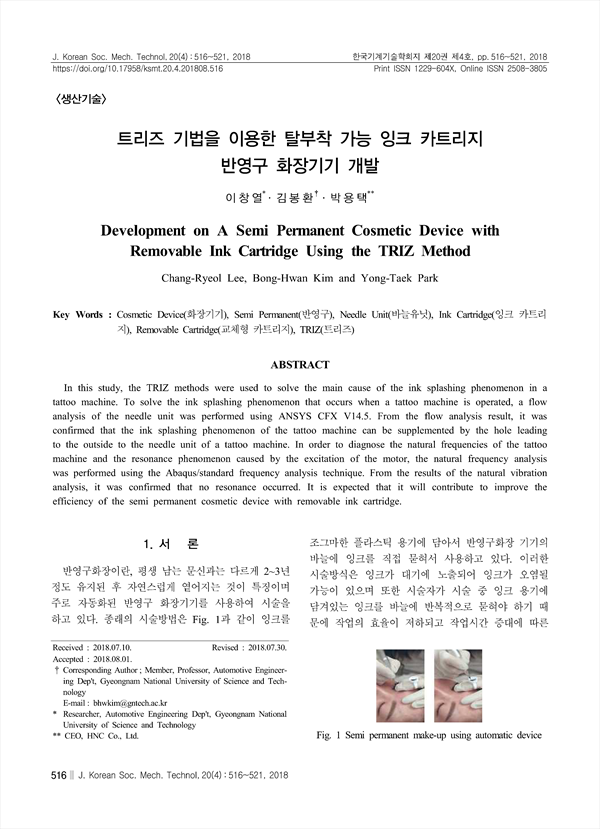

In this study, the TRIZ methods were used to solve the main cause of the ink splashing phenomenon in a tattoo machine. To solve the ink splashing phenomenon that occurs when a tattoo machine is operated, a flow analysis of the needle unit was performed using ANSYS CFX V14.5. From the flow analysis result, it was confirmed that the ink splashing phenomenon of the tattoo machine can be supplemented by the hole leading to the outside to the needle unit of a tattoo machine. In order to diagnose the natural frequencies of the tattoo machine and the resonance phenomenon caused by the excitation of the motor, the natural frequency analysis was performed using the Abaqus/standard frequency analysis technique. From the results of the natural vibration analysis, it was confirmed that no resonance occurred. It is expected that it will contribute to improve the efficiency of the semi permanent cosmetic device with removable ink cartridge.
