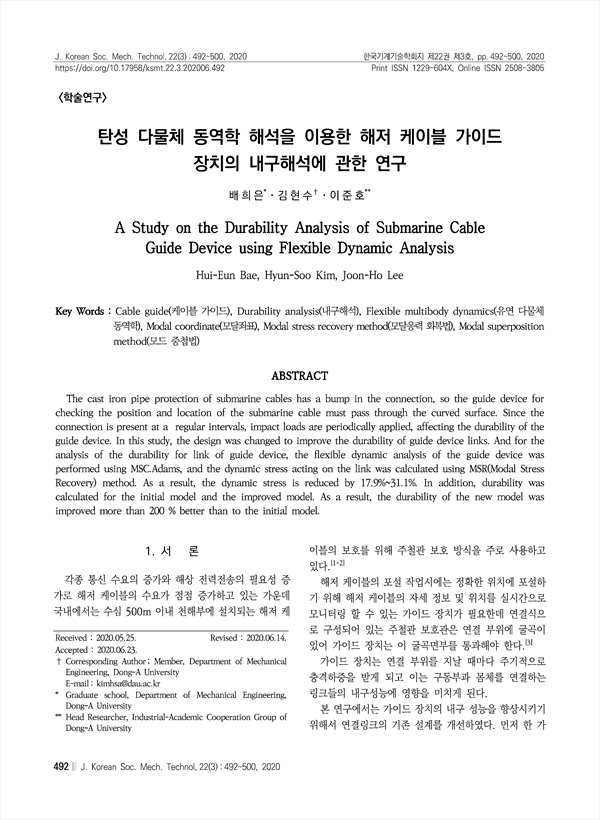

탄성 다물체 동역학 해석을 이용한 해저 케이블 가이드 장치의 내구해석에 관한 연구 A Study on the Durability Analysis of Submarine Cable Guide Device using Flexible Dynamic Analysis
pp.492-500
The cast iron pipe protection of submarine cables has a bump in the connection, so the guide device for checking the position and location of the submarine cable must pass through the curved surface. Since the connection is present at a regular intervals, impact loads are periodically applied, affecting the durability of the guide device. In this study, the design was changed to improve the durability of guide device links. And for the analysis of the durability for link of guide device, the flexible dynamic analysis of the guide device was performed using MSC.Adams, and the dynamic stress acting on the link was calculated using MSR(Modal Stress Recovery) method. As a result, the dynamic stress is reduced by 17.9%~31.1%. In addition, durability was calculated for the initial model and the improved model. As a result, the durability of the new model was improved more than 200 % better than to the initial model.
1. 서 론
2. 관련 이론
3. 탄성 다물체 동역학 해석
3.1 다물체 동역학 해석 모델 구성
3.2 탄성체 모델링
3.3 해석 조건
3.4 가이드 장치 동역학 해석 결과
4. 내구성능 해석
4.1 내구해석
4.3 내구해석 결과
5. 결 론
References
