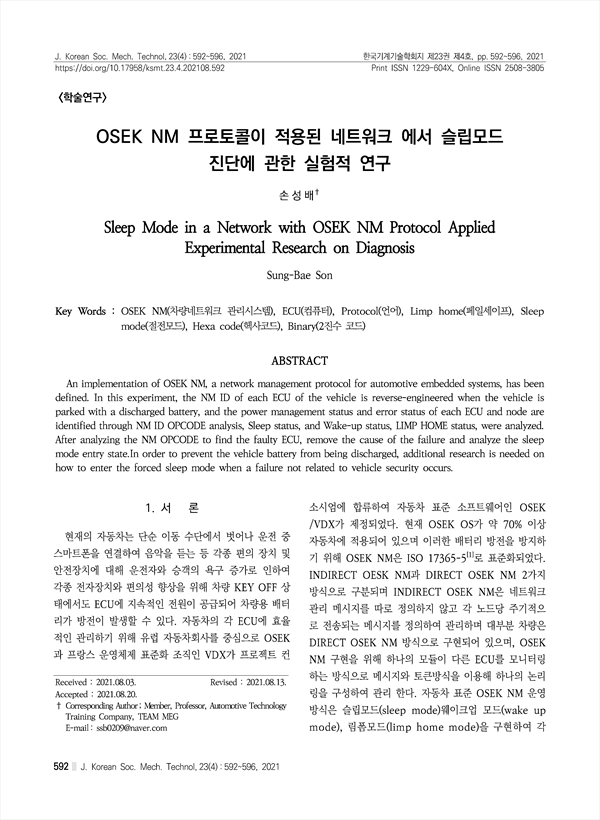

OSEK NM 프로토콜이 적용된 네트워크 에서 슬립모드 진단에 관한 실험적 연구 Sleep Mode in a Network with OSEK NM Protocol Applied Experimental Research on Diagnosis
한국기계기술학회지
(韓國機械技術學會誌)
제23권 제4호
(2021.08)
pp.592-596
pp.592-596
한국기계기술학회
(Korean Society of Mechanical Technology)
초록
An implementation of OSEK NM, a network management protocol for automotive embedded systems, has been defined. In this experiment, the NM ID of each ECU of the vehicle is reverse-engineered when the vehicle is parked with a discharged battery, and the power management status and error status of each ECU and node are identified through NM ID OPCODE analysis, Sleep status, and Wake-up status, LIMP HOME status, were analyzed. After analyzing the NM OPCODE to find the faulty ECU, remove the cause of the failure and analyze the sleep mode entry state.In order to prevent the vehicle battery from being discharged, additional research is needed on how to enter the forced sleep mode when a failure not related to vehicle security occurs.
