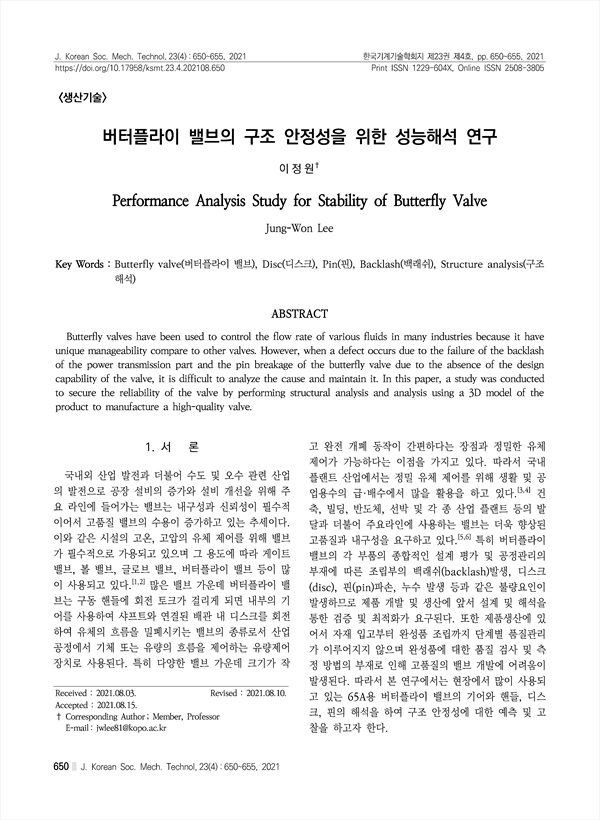

버터플라이 밸브의 구조 안정성을 위한 성능해석 연구 Performance Analysis Study for Stability of Butterfly Valve
한국기계기술학회지
(韓國機械技術學會誌)
제23권 제4호
(2021.08)
pp.650-655
pp.650-655
한국기계기술학회
(Korean Society of Mechanical Technology)
초록
Butterfly valves have been used to control the flow rate of various fluids in many industries because it have unique manageability compare to other valves. However, when a defect occurs due to the failure of the backlash of the power transmission part and the pin breakage of the butterfly valve due to the absence of the design capability of the valve, it is difficult to analyze the cause and maintain it. In this paper, a study was conducted to secure the reliability of the valve by performing structural analysis and analysis using a 3D model of the product to manufacture a high-quality valve.
