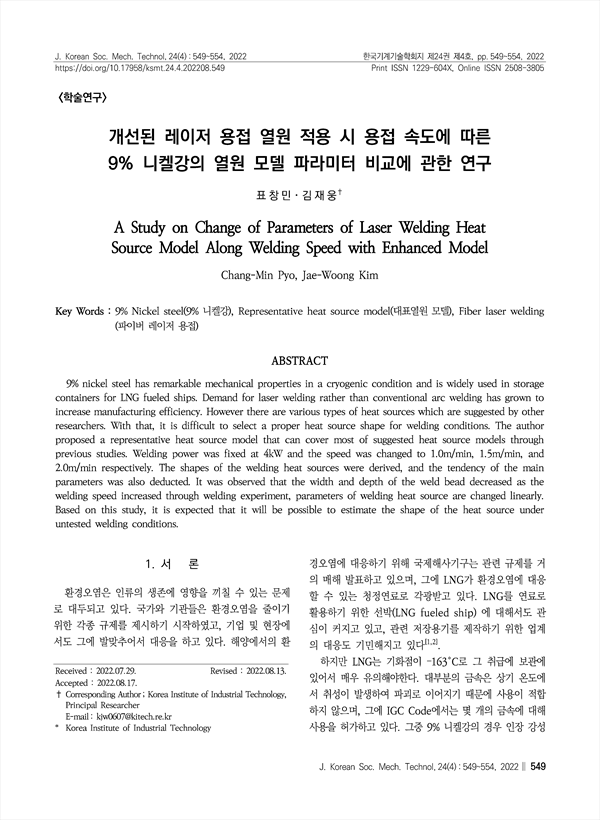

개선된 레이저 용접 열원 적용 시 용접 속도에 따른 9% 니켈강의 열원 모델 파라미터 비교에 관한 연구 A Study on Change of Parameters of Laser Welding Heat Source Model Along Welding Speed with Enhanced Model

표창민, 김재웅
  • 언어KOR
  • URLhttp://db.koreascholar.com/Article/Detail/416639
한국기계기술학회지 (韓國機械技術學會誌)
제24권 제4호 (2022.08)
pp.549-554
한국기계기술학회 (Korean Society of Mechanical Technology)
초록

9% nickel steel has remarkable mechanical properties in a cryogenic condition and is widely used in storage containers for LNG fueled ships. Demand for laser welding rather than conventional arc welding has grown to increase manufacturing efficiency. However there are various types of heat sources which are suggested by other researchers. With that, it is difficult to select a proper heat source shape for welding conditions. The author proposed a representative heat source model that can cover most of suggested heat source models through previous studies. Welding power was fixed at 4kW and the speed was changed to 1.0m/min, 1.5m/min, and 2.0m/min respectively. The shapes of the welding heat sources were derived, and the tendency of the main parameters was also deducted. It was observed that the width and depth of the weld bead decreased as the welding speed increased through welding experiment, parameters of welding heat source are changed linearly. Based on this study, it is expected that it will be possible to estimate the shape of the heat source under untested welding conditions.

저자
  • 표창민(한국생산기술연구원) | Chang-Min Pyo
  • 김재웅(한국생산기술연구원) | Jaewoong Kim Corresponding author
