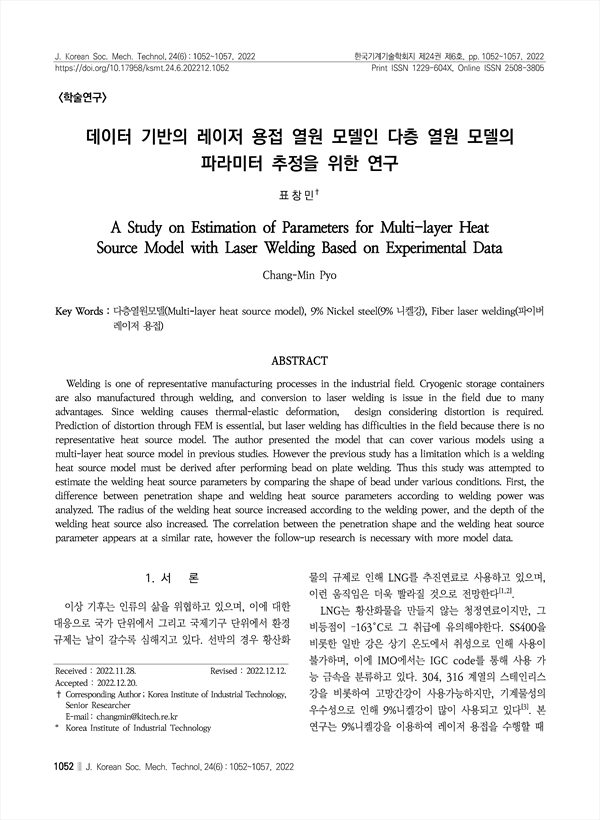

데이터 기반의 레이저 용접 열원 모델인 다층 열원 모델의 파라미터 추정을 위한 연구 A study on estimation of parameters for multi-layer heat source model with laser welding based on experiment data
pp.1052-1057
Welding is one of representative manufacturing processes in the industrial field. Cryogenic storage containers are also manufactured through welding, and conversion to laser welding is issue in the field due to many advantages. Since welding causes thermal-elastic deformation, design considering distortion is required. Prediction of distortion through FEM is essential, but laser welding has difficulties in the field because there is no representative heat source model. The author presented the model that can cover various models using a multi-layer heat source model in previous studies. However the previous study has a limitation which is a welding heat source model must be derived after performing bead on plate welding. Thus this study was attempted to estimate the welding heat source parameters by comparing the shape of bead under various conditions. First, the difference between penetration shape and welding heat source parameters according to welding power was analyzed. The radius of the welding heat source increased according to the welding power, and the depth of the welding heat source also increased. The correlation between the penetration shape and the welding heat source parameter appears at a similar rate, however the follow-up research is necessary with more model data.
