pp.17-22

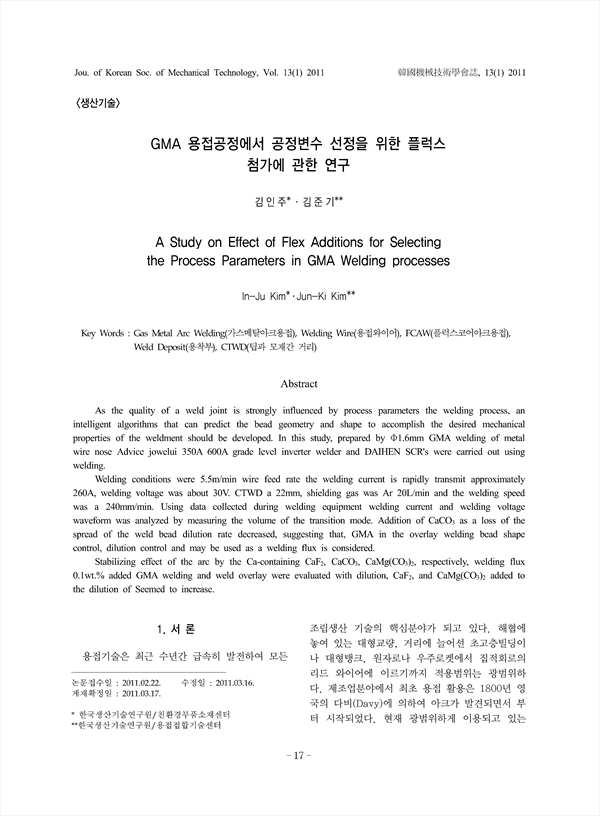

As the quality of a weld joint is strongly influenced by process parameters the welding process, an intelligent algorithms that can predict the bead geometry and shape to accomplish the desired mechanical properties of the weldment should be developed. In this study, prepared by Φ1.6mm GMA welding of metal wire nose Advice jowelui 350A 600A grade level inverter welder and DAIHEN SCR's were carried out using welding. Welding conditions were 5.5m/min wire feed rate the welding current is rapidly transmit approximately 260A, welding voltage was about 30V. CTWD a 22mm, shielding gas was Ar 20L/min and the welding speed was a 240mm/min. Using data collected during welding equipment welding current and welding voltage waveform was analyzed by measuring the volume of the transition mode. Addition of CaCO3 as a loss of the spread of the weld bead dilution rate decreased, suggesting that, GMA in the overlay welding bead shape control, dilution control and may be used as a welding flux is considered. Stabilizing effect of the arc by the Ca-containing CaF2, CaCO3, CaMg(CO3)2, respectively, welding flux 0.1wt.% added GMA welding and weld overlay were evaluated with dilution, CaF2, and CaMg(CO3)2 added to the dilution of Seemed to increase.
1. 서론
2. 메탈코어드 용접와이어 제조공정
3. 실험방법
3.1 메탈코어드 와이어의 제조 설비
3.2 실험
4. 결과 및 고찰
5. 결론
후기
참고문헌
