레이다에서 전파반사표식으로 사용하고 있는 코오너리프렉터를 수중 초음파반사표지로 응용하기 위하여, 코오너리프렉터의 수중초음파반사특성을 이론적으로 고찰하고, 28,50,75KHz의 주파수에 대하여 주파수가 높을수록 높았고, 반사지향성은 직경이 증가함에 따라 예리하였다. 2. 직경이 150mm이고, 코오너각이 15˚, 30˚, 45˚, 60˚, 90˚인 코오너리프렉터의 최대반사강도는 각각 -25.0dB, -17.2dB, -15.2dB, -13.4dB, -11.0dB로서, 코오너각이 증가함에 따라 점차 증가하는 경향을 나타내었으나, 그 주엽 수는 코오너각이 증가함에 따라 점차 감소하였다. 3. 직경이 80mm이고, 코오너각이 90˚인 코오너리프렉터를 2,3,4,5,6,7개씩 음속축을 중심으로 간격없이 평면배열한 경우에 있어서, 반사강도는 각각 -18.2dB, -16.5dB, -15.4dB, -14.3dB, -13.4dB, -12.9dB로서, 이론치와 거의 일치하였으며, 코오너리프렉터수의 평방근에 비례하였다. 4. 직경이 80mm인 코오너리프렉터의 방향각(0,θsub(a))이 0˚, 2.5˚, 5˚, 7.5˚, 10˚, 12.5˚인 경우, 반사강도는 각각 -21.2dB, -21.9dB, -23.4dB, -26.0dB, -30.0dB, -36.8dB로서, 방향성이 증가함에 따라 반사강도는 급격히 감소하는 경향을 나타내었다.

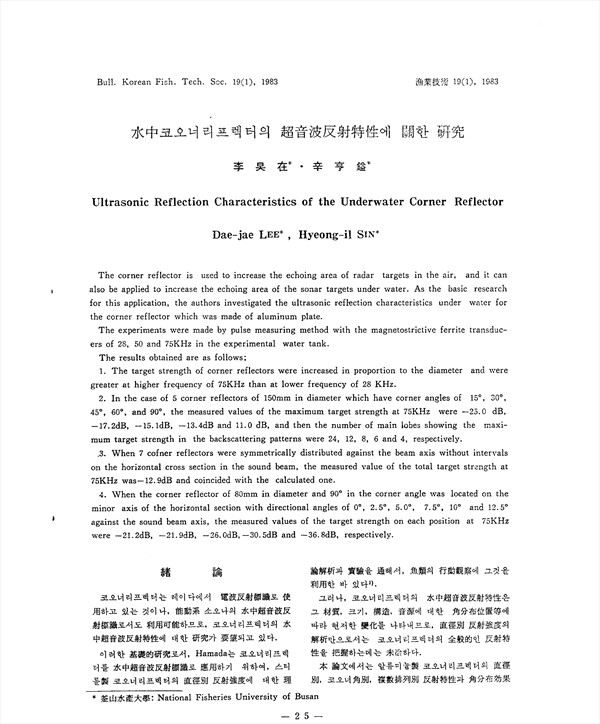

The corner reflector is used to increase the echoing area of radar targets in the air, and it can also be applied to increase the echoing area of the sonar targets under water. As the basic research for this application, the authors investigated the ultrasonic reflection characteristics under water for the corner reflector which was made of aluminum plate. The experiments were made by pulse measuring method with the magnetostrictive ferrite transducers of 28, 50 and 75KHz in the experimental water tank. The results obtained are as follows; 1. The target strength of corner reflectors were increased in proportion to the diameter and were greater at higher frequency of 75KHz than at lower frequency of 28KHz. 2. In the case of 5 corner reflectors of 150mm in diameter which have corner angles of 15˚, 30˚, 45˚, 60˚ and 90˚the measured values of the maximum target strength at 75KHz were-25.0 dB, -17.2dB, -15.1dB, -13.4dB and 11.0dB, and then the number of main lobes showing the maximum target strength in the backscattering patterns were 24, 12, 8, 6 and 4, respectively. 3. When 7 corner reflector of 80mm in diameter and 90˚ in the corner angle was located on the minor axis of the horizontal section with directional angles of 0˚, 2.5˚, 5.0˚, 7.5˚, 10˚ and 12.5˚ against the sound beam axis, the measured values of the target strength on each position at 75KHz were -21.2dB, -21.9dB, -26.0dB, -30.5dB and -36.8dB, respectively.
