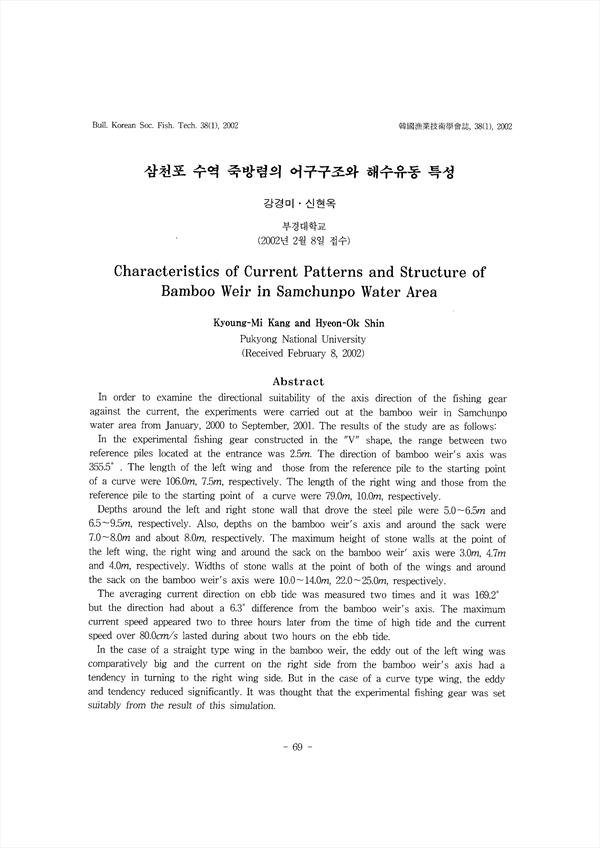

In order to examine the directional suitability of the axis direction of the fishing gear against the current, the experiments were carried out at the bamboo weir in Samchunpo water area from January, 2000 to September, 2001 The results of the study are as follows: In the experimental fishing gear constructed in the "V" shape, the range between two reference piles located at the entrance was 2.5m. The direction of bamboo weir′s axis was 355.5˚ The length of the left wing and those from the reference pile to the starting point of a curve were 106.0m, 7.5m, respectively. The length of the right wing and those from the reference pile to the starting point of a curve were 79.0m, 10.0m, respectively. Depths around the left and right stone wall that drove the steel pile were 5.0~6.5m and 6.5~9.5m, respectively. Also, depths on the bamboo weir′s axis and around the sack were 7.0~8.0m and about 8.0m, respectively. The maximum height of stone walls at the point of the left wing, the right wing and around the sack on the bamboo weir` axis were 3.0m, 4.7m and 4.0m, respectively, Widths of stone walls at the point of both of the wings and around the sack on the bamboo weir`s axis were 10.0~l4.0m, 22.0~25.0m, respectively. The averaging current direction on ebb tide was measured two times and it was 169.2˚ but the direction had about a 6.3˚ difference from the bamboo weirs axis. The maximum current speed appeared two to three hours later from the time of high tide and the current speed over 80.0cm/s lasted during about two Hours on the ebb tide In the case of a straight type wing In the bamboo weir, the eddy out of the left wing was comparatively big and the current on the right side from the bamboo weir′s axis had a tendency in turning to the right wing side. But in the case of a curve type wing, the eddy and tendency reduced significantly. It was thought that the experimental fishing gear was set suitably from the result of this simulation.

• 강경미
• 신현옥
