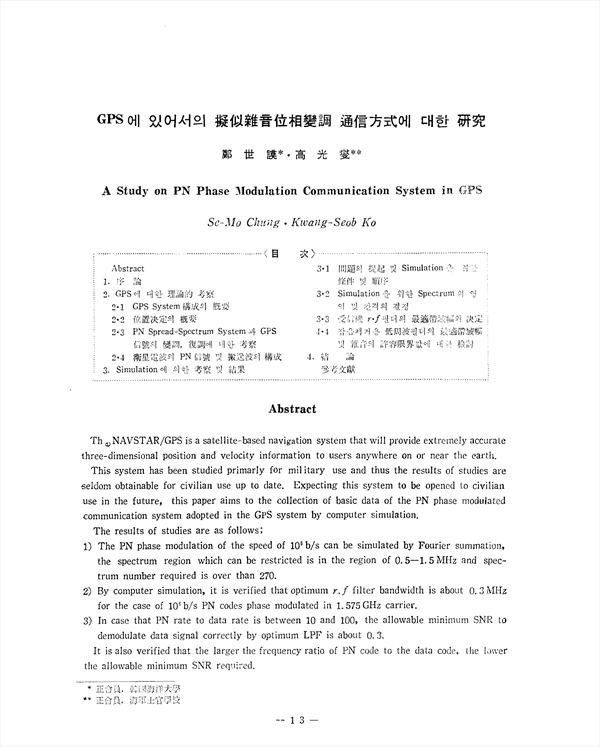

The NAVSTAR/GPS is a satellite-based navigation system that will provide extremely accurate three-dimensional position and velocity information to users anywhere on or near the earth. This system has been studied primarly for military use and thus the results of studies are seldom obtainable for civilian use up to date. Expecting this system to be opened to civilian use in the future, this paper aims to the collection of basic data of the PN phase modulated communication system adopted in the GPS system by computer simulation. The results of studies are as follows; 1) The PN phase modulation of the speed of 106b/s can be simulated by Fourier summation, the spectrum region which can be restricted is in the region of 0.5-1.5 MHz and spectrum number required is over than 270. 2) By computer simulation, it is verified that optimum r.f filter bandwidth is about 0.3 MHz for the case of 106b/s PN codes phase modulated in 1.575GHz carrier. 3) In case that PN rate to data rate is between 10 and 100, the allowable minimum SNR to demodulate data signal correctly by optimum LPF is about 0.3. It is also verified that the larger the frequency ratio of PN code to the data code, the lower the allowable minimum SNR required.

• 정세모
• 고광섭
