pp.69-72

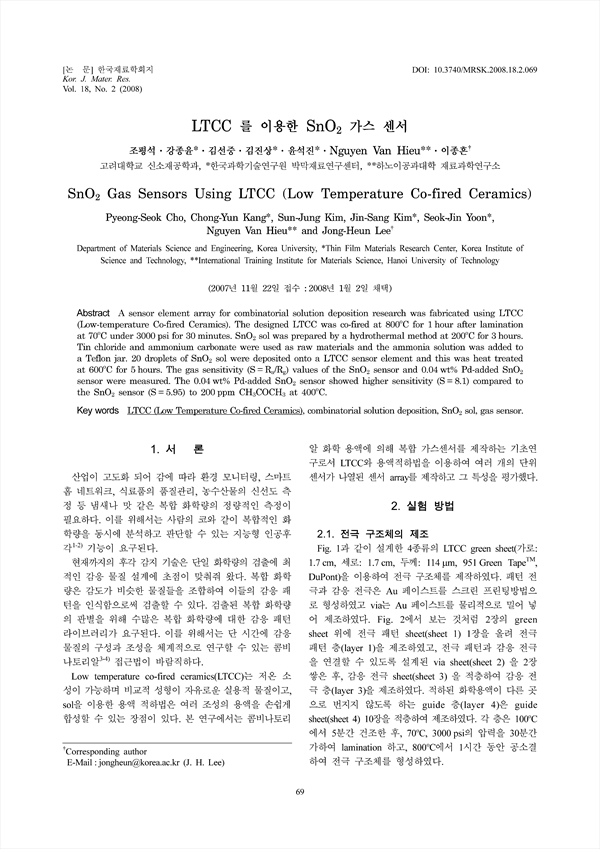

A sensor element array for combinatorial solution deposition research was fabricated using LTCC (Low-temperature Co-fired Ceramics). The designed LTCC was co-fired at 800˚C for 1 hour after lamination at 70˚C under 3000 psi for 30 minutes. SnO2 sol was prepared by a hydrothermal method at 200˚C for 3 hours. Tin chloride and ammonium carbonate were used as raw materials and the ammonia solution was added to a Teflon jar. 20 droplets of SnO2 sol were deposited onto a LTCC sensor element and this was heat treated at 600˚C for 5 hours. The gas sensitivity (S = Ra/Rg) values of the SnO2 sensor and 0.04 wt% Pd-added SnO2 sensor were measured. The 0.04 wt% Pd-added SnO2 sensor showed higher sensitivity (S = 8.1) compared to the SnO2 sensor (S = 5.95) to 200 ppm CH3COCH3 at 400˚C.
