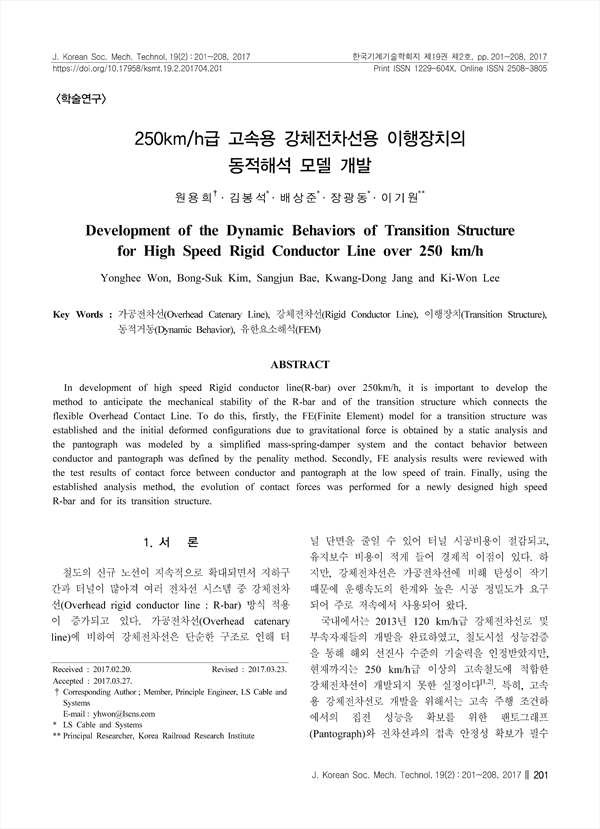

250km/h급 고속용 강체전차선용 이행장치의 동적해석 모델 개발 KCI 등재

Development of the Dynamic Behaviors of Transition Structure for High Speed Rigid Conductor Line over 250 km/h

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/330172
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국기계기술학회지 (Journal of the Korean Society of Mechanical Technology)
한국기계기술학회 (Korean Society of Mechanical Technology)
초록

In development of high speed Rigid conductor line(R-bar) over 250km/h, it is important to develop the method to anticipate the mechanical stability of the R-bar and of the transition structure which connects the flexible Overhead Contact Line. To do this, firstly, the FE(Finite Element) model for a transition structure was established and the initial deformed configurations due to gravitational force is obtained by a static analysis and the pantograph was modeled by a simplified mass-spring-damper system and the contact behavior between conductor and pantograph was defined by the penality method. Secondly, FE analysis results were reviewed with the test results of contact force between conductor and pantograph at the low speed of train. Finally, using the established analysis method, the evolution of contact forces was performed for a newly designed high speed R-bar and for its transition structure.

저자
  • 원용희(Principle Engineer, LS Cable and Systems) | Yonghee Won Corresponding Author
  • 김봉석(LS Cable and Systems) | Bong-Suk Kim
  • 배상준(LS Cable and Systems) | Sangjun Bae
  • 장광동(LS Cable and Systems) | Kwang-Dong Jang
  • 이기원(Principal Researcher, Korea Railroad Research Institute) | Ki-Won Lee
