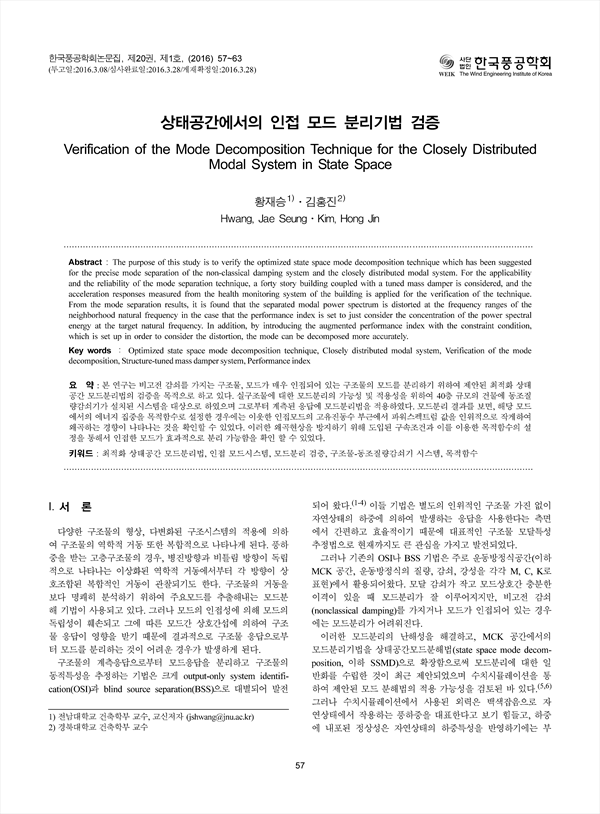

상태공간에서의 인접 모드 분리기법 검증 KCI 등재

Verification of the Mode Decomposition Technique for the Closely Distributed Modal System in State Space

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/384514
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국풍공학회지 (Journal of the Wind Engineering Institute of Korea)
한국풍공학회 (Wind Engineering Institute of Korea)
초록

본 연구는 비고전 감쇠를 가지는 구조물, 모드가 매우 인접되어 있는 구조물의 모드를 분리하기 위하여 제안된 최적화 상태 공간 모드분리법의 검증을 목적으로 하고 있다. 실구조물에 대한 모드분리의 가능성 및 적용성을 위하여 40층 규모의 건물에 동조질 량감쇠기가 설치된 시스템을 대상으로 하였으며 그로부터 계측된 응답에 모드분리법을 적용하였다. 모드분리 결과를 보면, 해당 모드 에서의 에너지 집중을 목적함수로 설정한 경우에는 이웃한 인접모드의 고유진동수 부근에서 파워스펙트럼 값을 인위적으로 작게하여 왜곡하는 경향이 나타나는 것을 확인할 수 있었다. 이러한 왜곡현상을 방지하기 위해 도입된 구속조건과 이를 이용한 목적함수의 설 정을 통해서 인접한 모드가 효과적으로 분리 가능함을 확인 할 수 있었다.

The purpose of this study is to verify the optimized state space mode decomposition technique which has been suggested for the precise mode separation of the non-classical damping system and the closely distributed modal system. For the applicability and the reliability of the mode separation technique, a forty story building coupled with a tuned mass damper is considered, and the acceleration responses measured from the health monitoring system of the building is applied for the verification of the technique. From the mode separation results, it is found that the separated modal power spectrum is distorted at the frequency ranges of the neighborhood natural frequency in the case that the performance index is set to just consider the concentration of the power spectral energy at the target natural frequency. In addition, by introducing the augmented performance index with the constraint condition, which is set up in order to consider the distortion, the mode can be decomposed more accurately.

목차
Abstract
요 약
I. 서 론
II. 상태공간 모드분해법
III. 계측응답에 대한 모드분리 검증
    3.1 대상구조물 및 응답 계측
    3.2 제안모드분해법의 검증
IV. 결 론
References
저자
  • 황재승(전남대학교 건축학부) | Hwang Jae Seung 교신저자
  • 김홍진(경북대학교 건축학부) | Kim Hong Jin
