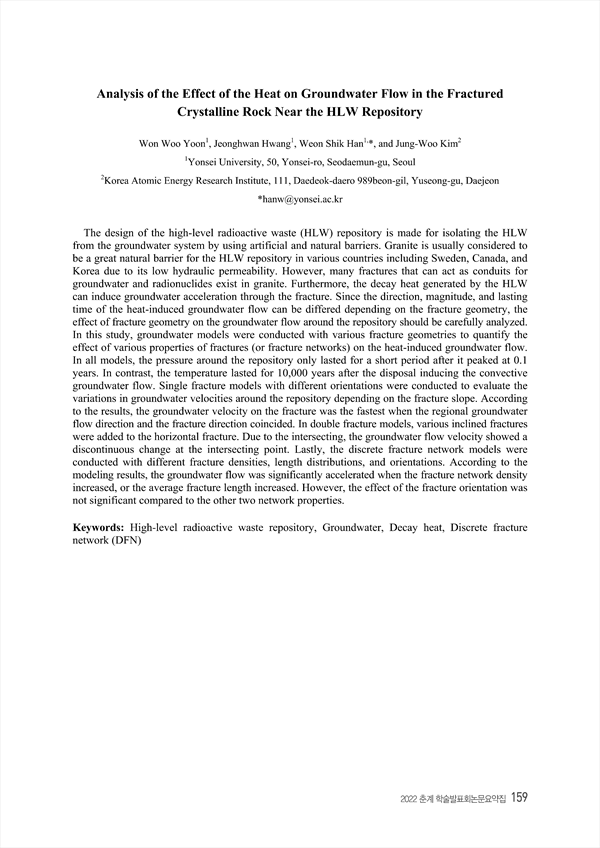

The design of the high-level radioactive waste (HLW) repository is made for isolating the HLW from the groundwater system by using artificial and natural barriers. Granite is usually considered to be a great natural barrier for the HLW repository in various countries including Sweden, Canada, and Korea due to its low hydraulic permeability. However, many fractures that can act as conduits for groundwater and radionuclides exist in granite. Furthermore, the decay heat generated by the HLW can induce groundwater acceleration through the fracture. Since the direction, magnitude, and lasting time of the heat-induced groundwater flow can be differed depending on the fracture geometry, the effect of fracture geometry on the groundwater flow around the repository should be carefully analyzed. In this study, groundwater models were conducted with various fracture geometries to quantify the effect of various properties of fractures (or fracture networks) on the heat-induced groundwater flow. In all models, the pressure around the repository only lasted for a short period after it peaked at 0.1 years. In contrast, the temperature lasted for 10,000 years after the disposal inducing the convective groundwater flow. Single fracture models with different orientations were conducted to evaluate the variations in groundwater velocities around the repository depending on the fracture slope. According to the results, the groundwater velocity on the fracture was the fastest when the regional groundwater flow direction and the fracture direction coincided. In double fracture models, various inclined fractures were added to the horizontal fracture. Due to the intersecting, the groundwater flow velocity showed a discontinuous change at the intersecting point. Lastly, the discrete fracture network models were conducted with different fracture densities, length distributions, and orientations. According to the modeling results, the groundwater flow was significantly accelerated when the fracture network density increased, or the average fracture length increased. However, the effect of the fracture orientation was not significant compared to the other two network properties.

• Jung-Woo Kim(Korea Atomic Energy Research Institute, 111, Daedeok-daero 989beon-gil, Yuseong-gu, Daejeon)
• Weon Shik Han(Yonsei University, 50, Yonsei-ro, Seodaemun-gu, Seoul) Corresponding author
• Jeonghwan Hwang(Yonsei University, 50, Yonsei-ro, Seodaemun-gu, Seoul)
• Won Woo Yoon(Yonsei University, 50, Yonsei-ro, Seodaemun-gu, Seoul)
