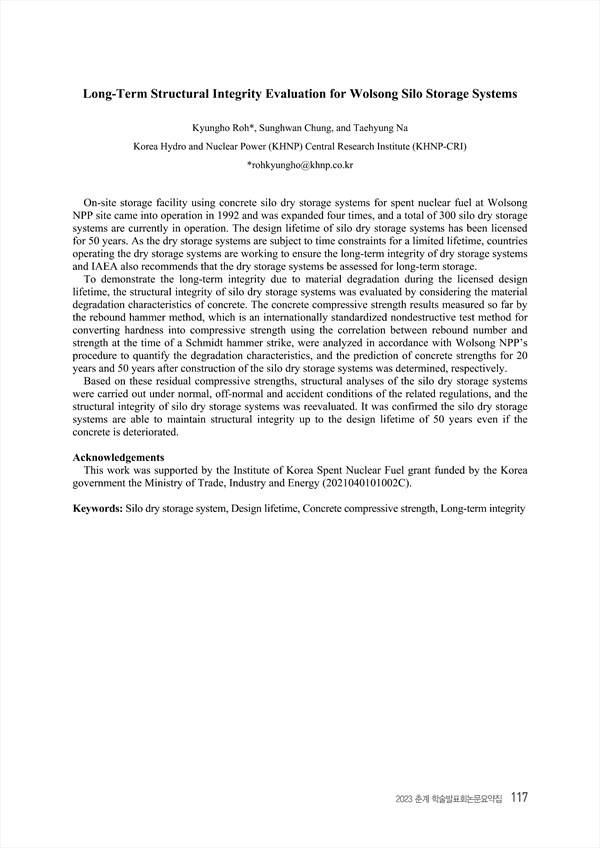

Long-Term Structural Integrity Evaluation for Wolsong Silo Storage Systems
p.117
On-site storage facility using concrete silo dry storage systems for spent nuclear fuel at Wolsong NPP site came into operation in 1992 and was expanded four times, and a total of 300 silo dry storage systems are currently in operation. The design lifetime of silo dry storage systems has been licensed for 50 years. As the dry storage systems are subject to time constraints for a limited lifetime, countries operating the dry storage systems are working to ensure the long-term integrity of dry storage systems and IAEA also recommends that the dry storage systems be assessed for long-term storage. To demonstrate the long-term integrity due to material degradation during the licensed design lifetime, the structural integrity of silo dry storage systems was evaluated by considering the material degradation characteristics of concrete. The concrete compressive strength results measured so far by the rebound hammer method, which is an internationally standardized nondestructive test method for converting hardness into compressive strength using the correlation between rebound number and strength at the time of a Schmidt hammer strike, were analyzed in accordance with Wolsong NPP’s procedure to quantify the degradation characteristics, and the prediction of concrete strengths for 20 years and 50 years after construction of the silo dry storage systems was determined, respectively. Based on these residual compressive strengths, structural analyses of the silo dry storage systems were carried out under normal, off-normal and accident conditions of the related regulations, and the structural integrity of silo dry storage systems was reevaluated. It was confirmed the silo dry storage systems are able to maintain structural integrity up to the design lifetime of 50 years even if the concrete is deteriorated.
