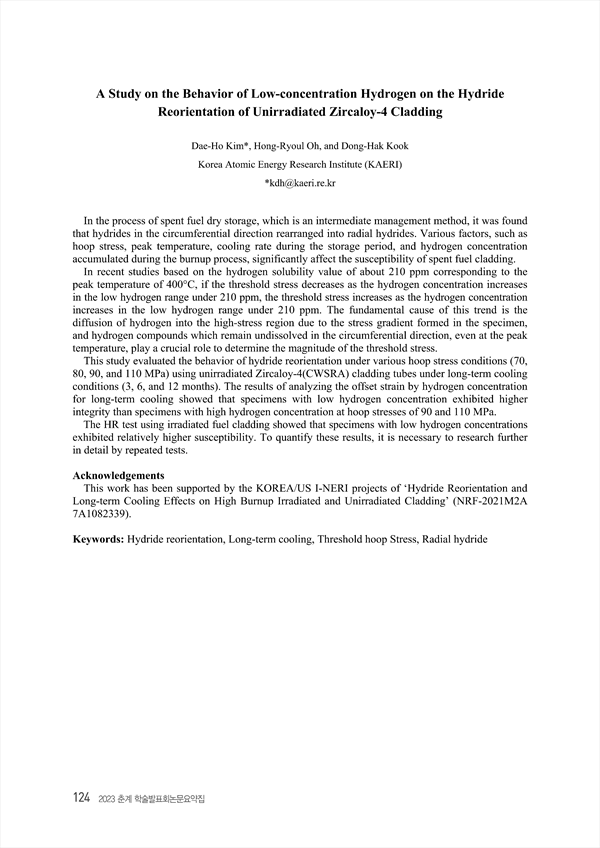

A Study on the Behavior of Low-concentration Hydrogen on the Hydride Reorientation of Unirradiated Zircaloy-4 Cladding
p.124
In the process of spent fuel dry storage, which is an intermediate management method, it was found that hydrides in the circumferential direction rearranged into radial hydrides. Various factors, such as hoop stress, peak temperature, cooling rate during the storage period, and hydrogen concentration accumulated during the burnup process, significantly affect the susceptibility of spent fuel cladding. In recent studies based on the hydrogen solubility value of about 210 ppm corresponding to the peak temperature of 400°C, if the threshold stress decreases as the hydrogen concentration increases in the low hydrogen range under 210 ppm, the threshold stress increases as the hydrogen concentration increases in the low hydrogen range under 210 ppm. The fundamental cause of this trend is the diffusion of hydrogen into the high-stress region due to the stress gradient formed in the specimen, and hydrogen compounds which remain undissolved in the circumferential direction, even at the peak temperature, play a crucial role to determine the magnitude of the threshold stress. This study evaluated the behavior of hydride reorientation under various hoop stress conditions (70, 80, 90, and 110 MPa) using unirradiated Zircaloy-4(CWSRA) cladding tubes under long-term cooling conditions (3, 6, and 12 months). The results of analyzing the offset strain by hydrogen concentration for long-term cooling showed that specimens with low hydrogen concentration exhibited higher integrity than specimens with high hydrogen concentration at hoop stresses of 90 and 110 MPa. The HR test using irradiated fuel cladding showed that specimens with low hydrogen concentrations exhibited relatively higher susceptibility. To quantify these results, it is necessary to research further in detail by repeated tests.
