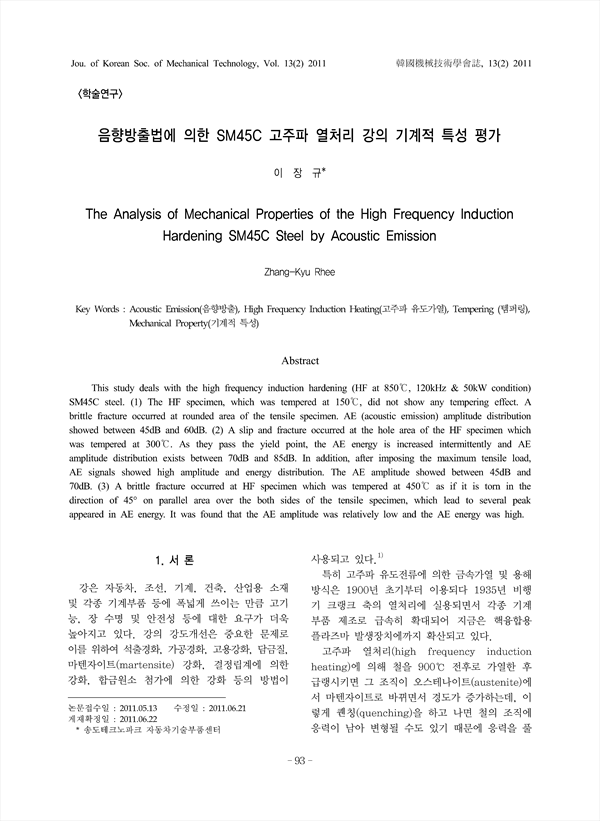

This study deals with the high frequency induction hardening (HF at 850℃, 120kHz & 50kW condition) SM45C steel. (1) The HF specimen, which was tempered at 150℃, did not show any tempering effect. A brittle fracture occurred at rounded area of the tensile specimen. AE (acoustic emission) amplitude distribution showed between 45dB and 60dB. (2) A slip and fracture occurred at the hole area of the HF specimen which was tempered at 300℃. As they pass the yield point, the AE energy is increased intermittently and AE amplitude distribution exists between 70dB and 85dB. In addition, after imposing the maximum tensile load, AE signals showed high amplitude and energy distribution. The AE amplitude showed between 45dB and 70dB. (3) A brittle fracture occurred at HF specimen which was tempered at 450℃ as if it is torn in the direction of 45° on parallel area over the both sides of the tensile specimen, which lead to several peak appeared in AE energy. It was found that the AE amplitude was relatively low and the AE energy was high.

Abstract
 1. 서론
 2. 실험재료 및 방법
  2.1 실험재료 및 시험편
  2.2 실험방법
 3. 실험결과 및 고찰
  3.1 경도시험
  3.2 인장시험과 파단면
  3.3 AE시험
 4. 결론
 참고문헌

• 이장규(송도테크노파크 자동차기술부품센터) | Zhang-Kyu Rhee
