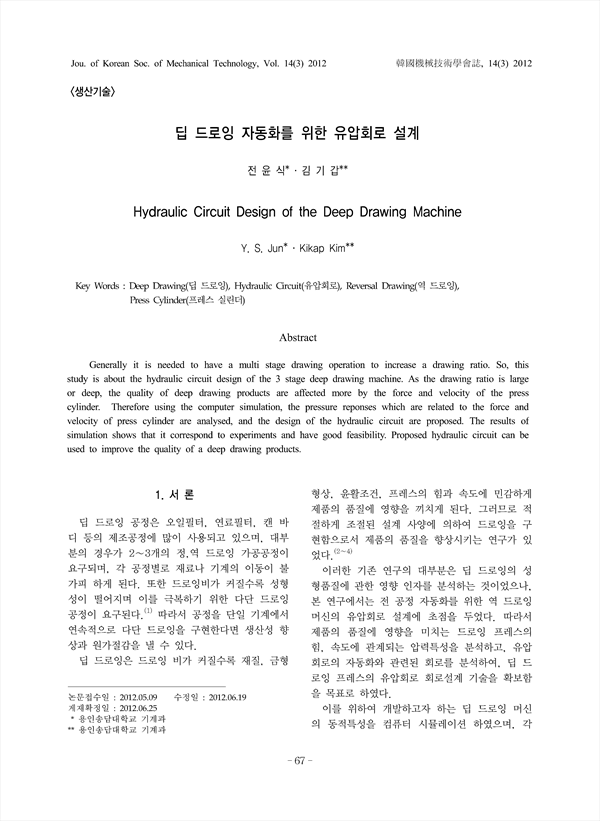

딥 드로잉 자동화를 위한 유압회로 설계 KCI 등재

Hydraulic Circuit Design of the Deep Drawing Machine

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/212881
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국기계기술학회지 (Journal of the Korean Society of Mechanical Technology)
한국기계기술학회 (Korean Society of Mechanical Technology)
초록

Generally it is needed to have a multi stage drawing operation to increase a drawing ratio. So, this study is about the hydraulic circuit design of the 3 stage deep drawing machine. As the drawing ratio is large or deep, the quality of deep drawing products are affected more by the force and velocity of the press cylinder. Therefore using the computer simulation, the pressure reponses which are related to the force and velocity of press cylinder are analysed, and the design of the hydraulic circuit are proposed. The results of simulation shows that it correspond to experiments and have good feasibility. Proposed hydraulic circuit can be used to improve the quality of a deep drawing products.

목차
Abstract
 1. 서론
 2. 본론
  2.1 유압회로 모델링
  2.2 시뮬레이션을 위한 유압회로의 요소설계
 3. 시뮬레이션 및 실험 결과
  3.1 급속 하강 시 메인 압력특성
  3.2 급속 하강 시 실린더 변위 응답특성
  3.3 급속 하강 시 유량응답특성
  3.4 제품추출 시 메인 압력특성
  3.5 제품추출 시 실린더 변위 응답특성
  3.6 제품추출 시 실린더 유량 동특성
 4. 결론
 참고문헌
저자
  • 전윤식(용인송담대학교 기계과) | Y. S. Jun
  • 김기갑(용인송담대학교 기계과) | Kikap Kim
