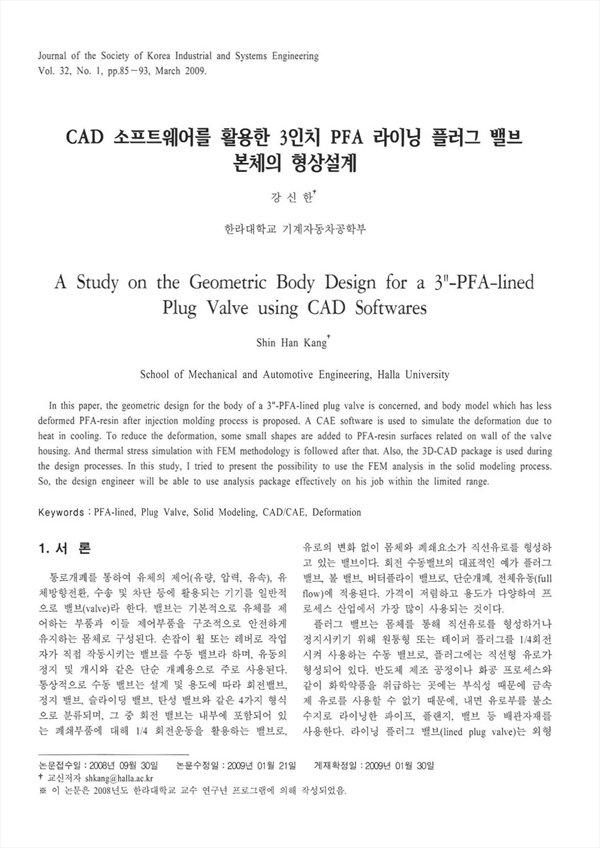

CAD 소프트웨어를 활용한 3인치 PFA 라이닝 플러그 밸브 본체의 형상설계 KCI 등재
A Study on the Geometric Body Design for a 3"-PFA-lined Plus Valve using CAD Softwares
한국산업경영시스템학회지
(Journal of Society of Korea Industrial and Systems Engineering)
Vol. 32 No. 1 (2009.03)
pp.85-93
pp.85-93
한국산업경영시스템학회
(Society of Korea Industrial and Systems Engineering)
초록
In this paper, the geometric design for the body of a 3"-PFA-lined plug valve is concerned, and body model which has less deformed PFA-resin after infection molding process is proposed. A CAE software is used to simulate the deformation due to heat in coo
