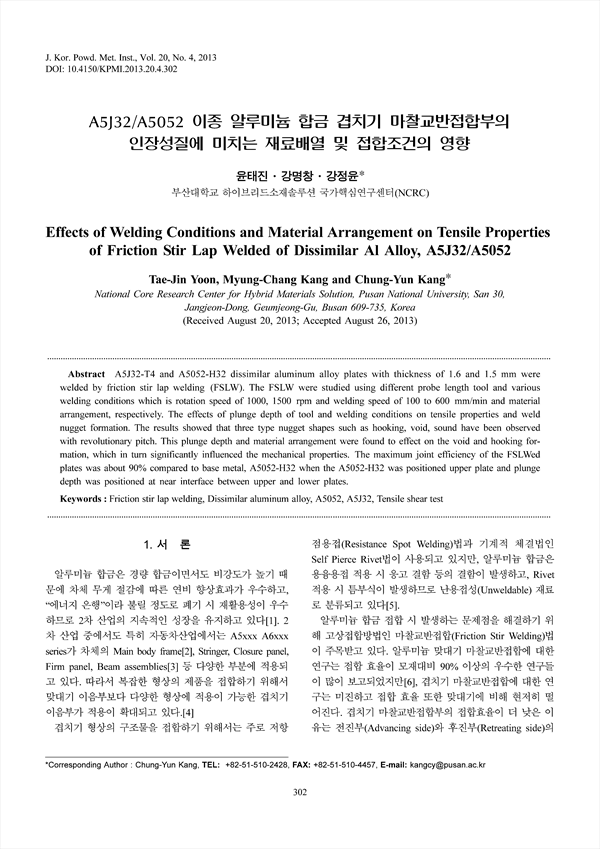

A5J32-T4 and A5052-H32 dissimilar aluminum alloy plates with thickness of 1.6 and 1.5 mm were welded by friction stir lap welding (FSLW). The FSLW were studied using different probe length tool and various welding conditions which is rotation speed of 1000, 1500 rpm and welding speed of 100 to 600 mm/min and material arrangement, respectively. The effects of plunge depth of tool and welding conditions on tensile properties and weld nugget formation. The results showed that three type nugget shapes such as hooking, void, sound have been observed with revolutionary pitch. This plunge depth and material arrangement were found to effect on the void and hooking for- mation, which in turn significantly influenced the mechanical properties. The maximum joint efficiency of the FSLWed plates was about 90% compared to base metal, A5052-H32 when the A5052-H32 was positioned upper plate and plunge depth was positioned at near interface between upper and lower plates.

• 윤태진(National Core Research Center for Hybrid Materials Solution, Pusan National University) | Tae-Jin Yoon
• 강명창(National Core Research Center for Hybrid Materials Solution, Pusan National University) | Myung-Chang Kang
• 강정윤(National Core Research Center for Hybrid Materials Solution, Pusan National University) | Chung-Yun Kang Corresponding Author
