논문 상세보기
pp.432-438

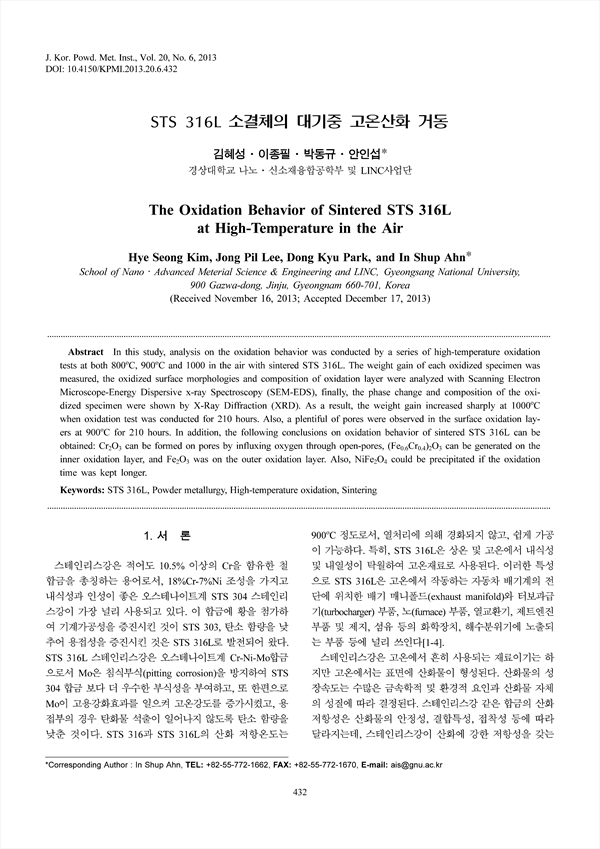

In this study, analysis on the oxidation behavior was conducted by a series of high-temperature oxidation tests at both 800oC, 900oC and 1000 in the air with sintered STS 316L. The weight gain of each oxidized specimen was measured, the oxidized surface morphologies and composition of oxidation layer were analyzed with Scanning Electron Microscope-Energy Dispersive x-ray Spectroscopy (SEM-EDS), finally, the phase change and composition of the oxidized specimen were shown by X-Ray Diffraction (XRD). As a result, the weight gain increased sharply at 1000oC when oxidation test was conducted for 210 hours. Also, a plentiful of pores were observed in the surface oxidation layers at 900oC for 210 hours. In addition, the following conclusions on oxidation behavior of sintered STS 316L can be obtained: Cr2O3 can be formed on pores by influxing oxygen through open-pores, (Fe0.6Cr0.4)2O3 can be generated on the inner oxidation layer, and Fe2O3 was on the outer oxidation layer. Also, NiFe2O4 could be precipitated if the oxidation time was kept longer.
