논문 상세보기

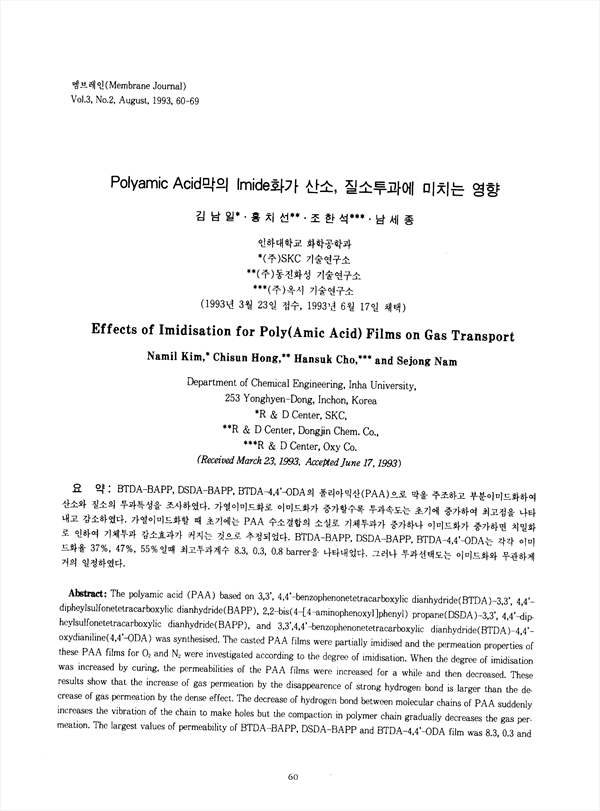

BTDA-BAPP, DSDA-BAPP, BTDA-4,4'ODA의 폴리아믹산(PAA)으로 막을 주조하고 부분이미드화하여 산소와 질소의 투과특성을 조사하였다. 가열이미드화로 이미드화가 증가할수록 투과속도는 초기에 증가하여 최고점을 나타내고 감소하였다. 가열이미드화할 때 ?에는 PAA 수소결합의 소실로 기체투과가 증가하나 이미드화가 증가하면 치밀화로 인하여 기체투과 감소효과가 커지는 것으로 추정되었다. BTDA-BAPP, DSDA-BAPP, BTDA-4,4'-ODA는 각각 이미드화율 37%, 47%, 55%일때 최고투과계수 8.3, 0.3, 0.8 barrer을 나타내었다. 그러나 투과선택도는 이미드화와 무관하게 거의 일정하였다.
The polyamic acid (PAA) based on 3,3', 4,4'-benzophenonetetracarboxylic dianhydride(BTDA)-3,3', 4,4'-dipheylsulfonetetracarboxylic dianhydride(BAPP), 2,2-bis(4-[4-aminophenoxyl]phenyl) propane(DSDA)-3,3', 4,4'-dipheylsulfonetetracarboxylic dianhydride(BAPP), and 3,3',4,4'-benzophenonetetracarboxylic dianhydride(BTDA)-4,4'-oxydianiline(4,4'-ODA) was synthesised. The casted PAA films were partially imidised and the permeation properties of these PAA films for O2 and N2 were investigated according to the degree of imidisation. When the degree of imidisation was increased by curing, the permeabilities of the PAA films were increased for a while and then decreased. These results show that the increase of gas permeation by the disappearence of strong hydrogen bond is larger than the decrease of gas permeation by the dense effect. The decrease of hydrogen bond between molecular chains of PAA suddenly increases the vibration of the chain to make holes but the compaction in polymer chain gradually decreases the gas permeation. The largest values of permeability of BTDA-BAPP, DSDA-BAPP and BTDA-4,4'-ODA film was 8.3, 0.3 and 0.8 barrer respectively, and the imidisation content corresponding to the values of the largest permeability was 37, 47 and 55% each. But the permselctivities of the PAA films were not changed by the variation of the degree of imidisation.
