논문 상세보기
폴리스티렌 막에서 CO2의 수착과 확산 KCI 등재
Sorption and Diffusion of Carbon Dioxide in Polystyrene Membrane
- 언어ENG
- URLhttps://db.koreascholar.com/Article/Detail/244179

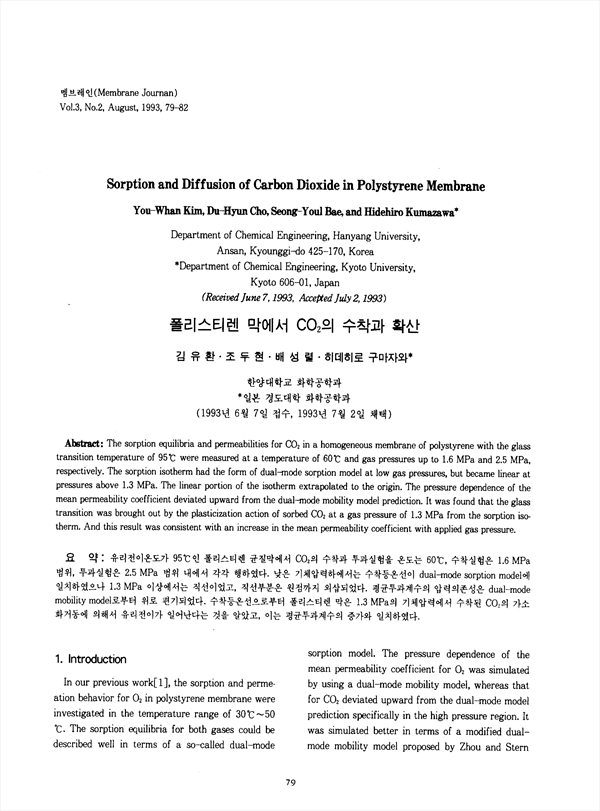

유리전이온도가 95℃인 폴리스티렌 균질막에서 CO2의 수착과 투과실험을 온도는 60℃, 수착실험은 1.6 MPa 범위, 투과실험은 2.5 MPa 범위 내에서 각각 행하였다. 낮은 기체압력하에서는 수착등온선이 dual-mode sorption model에 일치하였으나 1.3 MPa 이상에서는 직선이었고, 직선부분은 원점까지 외삽되었다. 평균투과계수의 압력의존성은 dual-mode mobility model로부터 위로 편기되었다. 수착등온선으로부터 폴리스티렌 막은 1.3 MPa의 기체압력에서 수착된 CO2의 가소화거동에 의해서 유리전이가 일어난다는 것을 알았고, 이는 평균투과계수의 증가와 일치하였다.
The sorption equilibria and permeabilities for CO2 in a homogeneous membrane of polystyrene with the glass transition temperature of 95℃ were measured at a temperature of 60℃ and gas pressures up to 1.6 MPa and 2.5 MPa, respectively. The sorption isotherm had the form af dual-mode sorption model at low gas pressures, but became linear at pressures above 1.3 MPa. The linear portion of the isotherm extrapolated to the origin. The pressure dependence of the rnean permeability coefficient deviated upward from the dualsrhode mobility model prediction. It was found that the glass transition was brought out by the plasticization action of sotbed CO2 at a gas pressure of 1.3 MPa from the sorption isotherm. And this result was consistent with an increase in the mean permeability coefficient with applied gas pressure.
