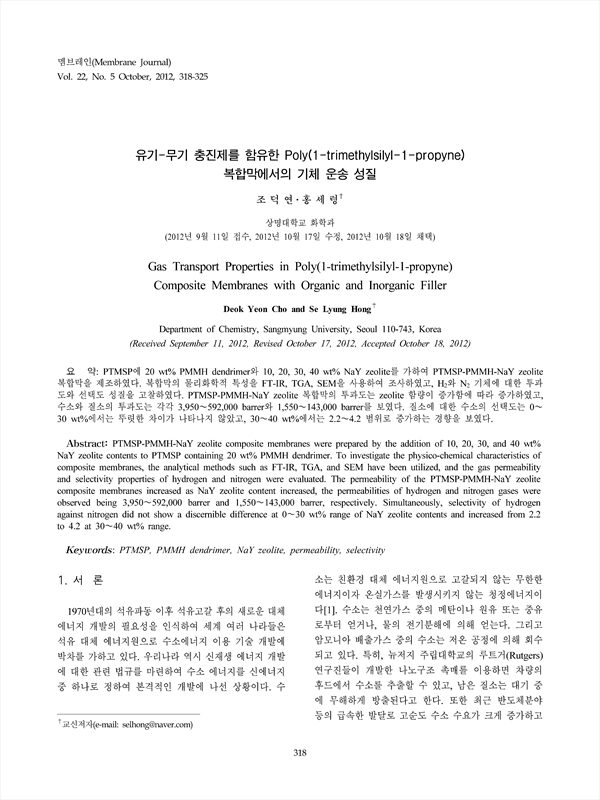

PTMSP에 20 wt% PMMH dendrimer와 10, 20, 30, 40 wt% NaY zeolite를 가하여 PTMSP-PMMH-NaY zeolite 복합막을 제조하였다. 복합막의 물리화학적 특성을 FT-IR, TGA, SEM을 사용하여 조사하였고, H2와 N2 기체에 대한 투과도와 선택도 성질을 고찰하였다. PTMSP-PMMH-NaY zeolite 복합막의 투과도는 zeolite 함량이 증가함에 따라 증가하였고, 수소와 질소의 투과도는 각각 3,950~592,000 barrer와 1,550~143,000 barrer를 보였다. 질소에 대한 수소의 선택도는 0~30 wt%에서는 뚜렷한 차이가 나타나지 않았고, 30~40 wt%에서는 2.2~4.2 범위로 증가하는 경향을 보였다.
PTMSP-PMMH-NaY zeolite composite membranes were prepared by the addition of 10, 20, 30, and 40 wt% NaY zeolite contents to PTMSP containing 20 wt% PMMH dendrimer. To investigate the physico-chemical characteristics of composite membranes, the analytical methods such as FT-IR, TGA, and SEM have been utilized, and the gas permeability and selectivity properties of hydrogen and nitrogen were evaluated. The permeability of the PTMSP-PMMH-NaY zeolite composite membranes increased as NaY zeolite content increased, the permeabilities of hydrogen and nitrogen gases were observed being 3,950~592,000 barrer and 1,550~143,000 barrer, respectively. ultaneously, selectivity of hydrogen against nitrogen did not show a discernible difference at 0~30 wt% range of NaY zeolite contents and increased from 2.2 to 4.2 at 30~40 wt% range.
