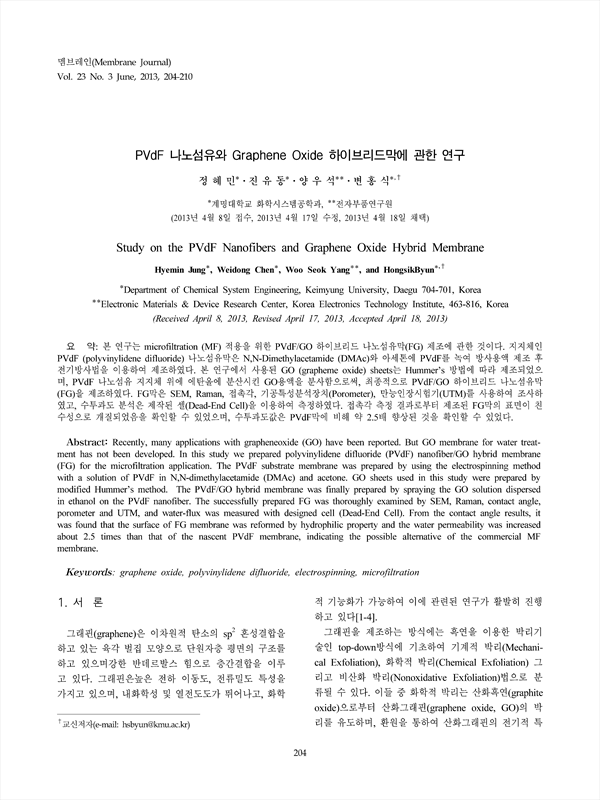

본 연구는 microfiltration (MF) 적용을 위한 PVdF/GO 하이브리드 나노섬유막(FG) 제조에 관한 것이다. 지지체인 PVdF (polyvinylidene difluoride) 나노섬유막은 N,N-Dimethylacetamide (DMAc)와 아세톤에 PVdF를 녹여 방사용액 제조 후 전기방사법을 이용하여 제조하였다. 본 연구에서 사용된 GO (grapheme oxide) sheets는 Hummer’s 방법에 따라 제조되었으며, PVdF 나노섬유 지지체 위에 에탄올에 분산시킨 GO용액을 분사함으로써, 최종적으로 PVdF/GO 하이브리드 나노섬유막(FG)을 제조하였다. FG막은 SEM, Raman, 접촉각, 기공특성분석장치(Porometer), 만능인장시험기(UTM)를 사용하여 조사하였고, 수투과도 분석은 제작된 셀(Dead-End Cell)을 이용하여 측정하였다. 접촉각 측정 결과로부터 제조된 FG막의 표면이 친수성으로 개질되었음을 확인할 수 있었으며, 수투과도값은 PVdF막에 비해 약 2.5배 향상된 것을 확인할 수 있었다.
Recently, many applications with grapheneoxide (GO) have been reported. But GO membrane for water treatment has not been developed. In this study we prepared polyvinylidene difluoride (PVdF) nanofiber/GO hybrid membrane (FG) for the microfiltration application. The PVdF substrate membrane was prepared by using the electrospinning method with a solution of PVdF in N,N-dimethylacetamide (DMAc) and acetone. GO sheets used in this study were prepared by modified Hummer’s method. The PVdF/GO hybrid membrane was finally prepared by spraying the GO solution dispersed in ethanol on the PVdF nanofiber. The successfully prepared FG was thoroughly examined by SEM, Raman, contact angle, porometer and UTM, and water-flux was measured with designed cell (Dead-End Cell). From the contact angle results, it was found that the surface of FG membrane was reformed by hydrophilic property and the water permeability was increased about 2.5 times than that of the nascent PVdF membrane, indicating the possible alternative of the commercial MF membrane.
