논문 상세보기
pp.141-148
본 연구에서는 생체모방기술을 응용하여 감성의류용 구조발색사를 방사하고, 이를 사용하여 직물을 제직 감량 가공하여 이들의 발색성 및 촉감 물성을 측정하여 감성의류용 용도의 적용성을 확인하여 다음과 같은 연구결과를 얻었다. 삼각단면을 가진 37층의 폴리에스테르와 나일론을 교호로 적층한 구조발색사의 방사조건을 확립하였으며, 이 세 가지 사의 발색성을 multi angle spectro-photometer로 확인하였다. 그리고 이 사들로 제직한 구조발색 직물 세 가지의 겉보기 색차와 반사율을 분석한 결과, 700nm에서 400nm까지의 파장에서 발색성을 확인하였다. 또한, 직물의 밀도와 조직이 다른 세 가지 구조발색 직물을 제직하고 감량 가공 처리하여 직물 역학특성치에서 촉감을 측정한 결과, 100℃, 60분 감량 처리한 시료가 최적설계(194ends/in × 105picks/in) 및 감량 조건임을 확인할 수 있었다. 그리고 감량 처리 시 온도와 처리시간 증가에 따라 감량률이 13%에서 최대 23%까지 증가함을 확인할 수 있었다. 이때 직물의 신축특성, 굽힘강성 및 전단강성은 감소하며 압축특성은 증가하는 현상을 보였다. 그리고 최적설계조건인 1번 직물시료를 100℃, 60분 감량 처리할 때 촉감이 가장 우수하며 일본 몰포 직물보다 더 우수한 촉감치를 얻었다.

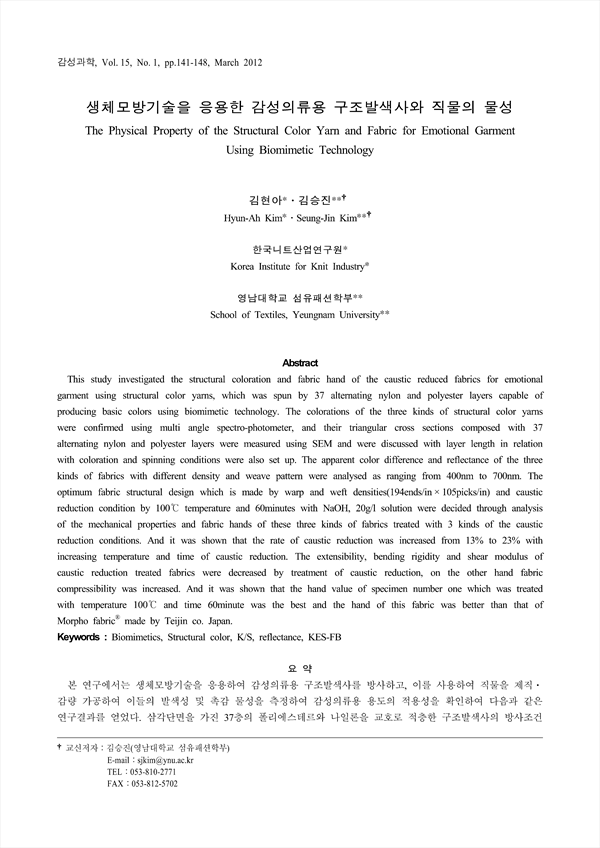

This study investigated the structural coloration and fabric hand of the caustic reduced fabrics for emotional garment using structural color yarns, which was spun by 37 alternating nylon and polyester layers capable of producing basic colors using biomimetic technology. The colorations of the three kinds of structural color yarns were confirmed using multi angle spectro-photometer, and their triangular cross sections composed with 37 alternating nylon and polyester layers were measured using SEM and were discussed with layer length in relation with coloration and spinning conditions were also set up. The apparent color difference and reflectance of the three kinds of fabrics with different density and weave pattern were analysed as ranging from 400nm to 700nm. The optimum fabric structural design which is made by warp and weft densities(194ends/in × 105picks/in) and caustic reduction condition by 100℃ temperature and 60minutes with NaOH, 20g/l solution were decided through analysis of the mechanical properties and fabric hands of these three kinds of fabrics treated with 3 kinds of the caustic reduction conditions. And it was shown that the rate of caustic reduction was increased from 13% to 23% with increasing temperature and time of caustic reduction. The extensibility, bending rigidity and shear modulus of caustic reduction treated fabrics were decreased by treatment of caustic reduction, on the other hand fabric compressibility was increased. And it was shown that the hand value of specimen number one which was treated with temperature 100℃ and time 60minute was the best and the hand of this fabric was better than that of Morpho fabric® made by Teijin co. Japan.
