자동단열온실시스템을 개발할 목적으로 실험용 온실의 천정과 벽체를 이중벽으로 제작하여 이중벽 내부에 단열입자를 자동으로 충전 회수할 수 있도록 시스템을 구성하여, 입자의 송풍성능, 투광성, 입자의 마모실험, 온실의 단열성능 및 차광효과를 분석한 결과를 요약하면 다음과 같다. 1. 약 2㎥의 입자를 충전 회수하는데 약 1시간 15분이 소요되었으나, 온실의 규모에 적합한 송풍기의 용량, 배기구의 면적, 충전관 및 회수관의 조절로 소요시간을 감소시킬 수 있을 것으로 판단되었다. 2. 단열입자의 회수 직후에 이중벽온실의 투광성을 객관성 있게 평가할 수 있는 10시에서 15시까지의 평균 투광율은 67%로 나타났다. 3. 입자의 충전 및 회수를 직송방식으로 하였을 때, 입자마모율이 연속 5개월 사용시 20%로 나타나, 입자의 충전 및 회수를 간접방식으로 수행하는 것이 타당한 것으로 분석되었다. 4. 겨울철 야간에 단열입자를 회수한 이중벽 온실의 내부온도는 외기온보다 평균 3.4℃ 높았으나, 입자를 충전한 단열온실의 내부온도는 단열면적비가 73%일때 외기온보다 평균 6.6℃ 높았고, 단열면적비가 100%일때 외기온보다 평균 13.5℃ 높게 나타나 단열온실의 야간단열성능이 우수함을 알 수 있었다. 5. 일사가 양호하고 외기온이 높은 주간에 입자를 충전한 단열온실(단열면적비 100%)의 차광성능을 분석한 결과, 외기온의 평균이 36.9℃일 때 온실내부온도의 평균은 30℃로 외기온보다 평균 7℃ 낮게 나타나 차광효과가 크다는 사실을 알 수 있었다.

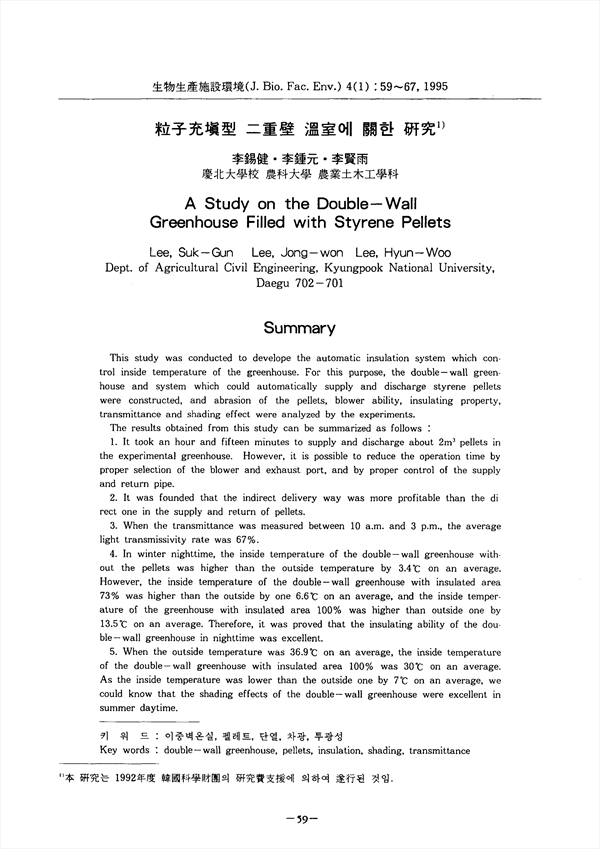

This study was conducted to develope the automatic insulation system which control inside temperature of the greenhouse. For this purpose, the double- wall greenhouse and system which could automatically supply and discharge styrene pellets were constructed and abrasion of the pellets, blower ability, insulating property, transmittance and shading effect were analyzed by the experiments. The results obtained from this study can be summarized as follows : 1. It took an hour and fifteen minutes to supply and discharge about 2㎥ pellets in the experimental greenhouse. However, it is possible to reduce the operation time by proper selection of the blower and exhaust port, and by proper control of the supply and return pipe. 2. It was founded that the indirect delivery way was more profitable than the direct one in the supply and return of pellets. 3. When the transmittance was measured between 10 a.m. and 3 p.m., the average light transmissivity rate was 67%. 4. In winter nighttime, the inside temperature of the double- wall greenhouse with out the pellets was higher than the outside temperature by 3.4℃ on an average. However, the inside temperature of the double - wall greenhouse with insulated area 73% was higher than the outside by one 6.6℃ on an average, and the inside temperature of the greenhouse with insulated area 100% was higher than outside one by 13.5℃ on an average. Therefore, it was proved that the insulating ability of the double - wall greenhouse in nighttime was excellent. 5. When the outside temperature was 36.9℃ on an average, the inside temperature of the double- wail greenhouse with insulated area 100% was 30℃ on an average. As the inside temperature was lower than the outside one by 7℃ on an average, we could know that the shading effects of the double- wall greenhouse were excellent in summer daytime.

• 이석건
• 이종원
• 이현우
