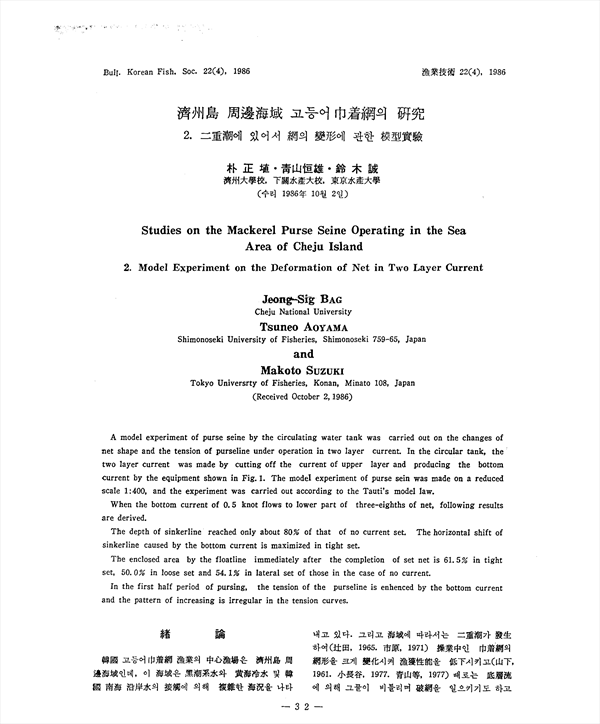

A model experiment of purse seine by the circulating water tank was carried out on the changes of net shape and the tension of purseline under operation in two layer current. In the circular tank, the two layer current was made by cutting off the current of upper layer and producing the bottom current by the equipment shown in Fig. 1. The model experiment of purse sein was made on a reduced scale 1 :400, and the experiment was carried out according to the Tauti's model law. When the bottom current of O. 5 knot flows to lower part of three-eighths of net, following results are derived. The depth of sinkerline reached only about 80% of that of no current set. The horizontal shift of sinker line caused by the bottom current is maximized in tight set. The enclosed area by the floatIine immediately after the completion of set net is 61. 5% in tight set, 50. 0 % in loose set and 54. 1 % in lateral set of those in the case of no current. In the first half period of pursing, the tension of the purseline is enhenced by the bottom current and the pattern of increasing is irregular in the tension curves.
