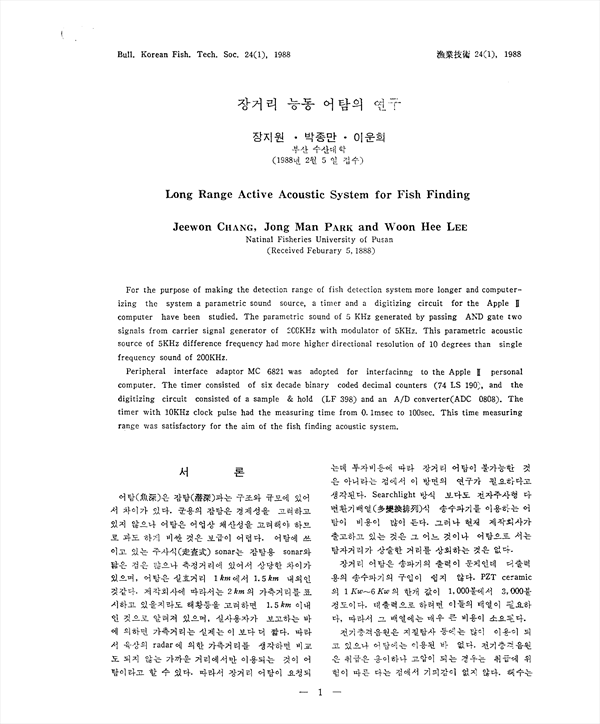

For the purpose of making the detection range of fish detection system more longer and computerizing the system a parametric sound source, a timer and a digitizing circuit for the Apple II computer have been studied. The parametric sound of 5 KHz generated by passing AND gate two signals from carrier signal generator of 200KHz with modulator of 5KHz. This parametric acoustic source of 5KHz difference frequency had more higher directional resolution of 10 degrees than single frequency sound of 200KHz. Peripheral interface adaptor MC 6821 was adopted for interfacing to the Apple II personal computer. The timer consisted of six decade binary coded decimal counters (74 LS 190), and the digitizing circuit consisted of a sample and hold (LF 398) and an A/D converter(ADC 0808). The timer with 10KHz clock pulse had the measuring time from 0.1msec to 100sec. This time measuring range was satisfactory for the aim of the fish finding acoustic system.
