어군탐지기에 의한 어군량 추정에 관한 기초적 연구 ( 2 ) - 어군의 분포밀도와 초음파산란강도의 관계 - KCI 등재

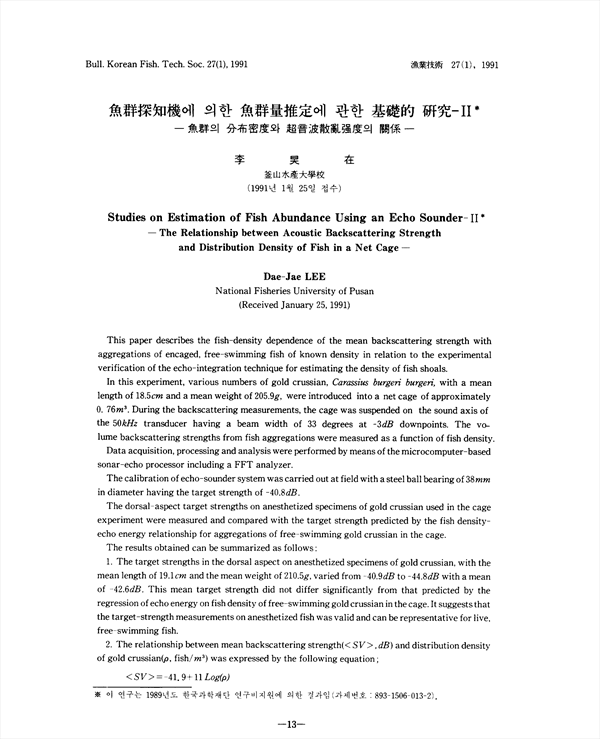

Studies on Estimation of Fish Abundance Using an Echo Sounder ( 2 ) - The Relationship between Acoustic Backscattering Strength and Distribution Density of Fish in a Net Cage-

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/255907
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
수산해양기술연구 (Journal of the Korean Society of Fisheries and Ocean Technology)
한국수산해양기술학회(구 한국어업기술학회) (The Korean Society of Fisheriers and Ocean Technology)
초록

어군의 분포밀도와 초음파산란강도의 관계를 검토하기 위하여, 50kHz의 주파수에서 net cage (농망)에 분포밀도가 기지인 어군을 수용하고, 어군밀도의 변화에 기인하는 echo energy의 변동을 고찰하고, 또 cage 실험에 의해 추정한 어체의 평균적인 반사강도와 개개의 어체를 대상으로 구한 평균반사강도를 상호 비교, 검토한 결과를 요약하면 다음과 같다. 1. cage 실험에 의한 붕어의 평균반사강도는 -41.9dB로서, 이 값은 현장에서 개개의 붕어(마취어, 평균체장 19.1cm)를 대상으로 측정한 평균반사강도 -42.6dB보다 0.7dB 더 컸다. 2. cage내에 수용한 어군의 분포밀도가 증가함에 따라, 어군에 의한 평균체적산란강도는 직선적으로 증가하는 경향을 나타내었다. 즉, 어군밀도가 7, 13, 20, 26, 39, 52, 66 마리/m 상(3)였을 때, 각각의 어군에 의한 평균체적산란강도는 -33.0, -28.9, -27.6, -24.3, -25.1, -23.6, -22.1dB이었다. 3. 어군밀도 σ(마리/m 상(3))와 평균체적산란강도 (dB)와의 사이에는 다음의 관계식이 성립하였다. =-41.9+11.0 Log(σ), r=0.97 이 식에 회귀직선의 기울기 11은 이론적인 값 10에 거의 근사하였다.

This paper describes the fish-density dependence of the mean backscattering strength with aggregations of encaged, free-swimming fish of known density in relation to the experimental verification of echo-integration technique for estimating the density of fish shoals. In this experiment, various numbers of gold crussian, Carassius burgeri burgeri, with a mean length of 18.5cm and a mean weight of 205.9g, were introduced into a net cage of approximately 0.76m super(3). During the backscattering measurements. the cage was suspended on the sound axis of the 50kHz transducer having a beam width of 33 degrees at -3dB downpoints. The volume backscattering strengths from fish aggregations were measured as a function of fish density. Data acquisition, processing and analysis were performed by means of the microcomputer-based sonar-echo processor including a FFT analyzer. The calibration of echo-sounder system was carried out at field with a steel ball bearing of 38mm in diameter having the target strength of -40.8dB. The dorsal-aspect target strengths on anesthetized specimens of gold crussian used in the cage experiment were measured and compared with the target strength predicted by the fish density-echo energy relationship for aggregations of free-swimming gold crussian in the cage. The results obtained can be summarized as follows: 1. The target strengths in the dorsal aspect on anesthetized specimens of gold crussian, with the mean length of 19.1cm and the mean weight of 210.5g, varied from -40.9dB to -44.8dB with a mean of -42.6dB. This mean target strength did not differ significantly from that predicted by the regression of echo energy on fish density of free-swimming gold crussian in the cage. It suggests that the target-strength measurements on anesthetized fish was valid and can be representative for live, free-swimming fish. 2. The relationship between mean backscattering strength(, dB) and distribution density of gold crussian(σ, fish/m super(3)) was expressed by the following equation; =-41.9+11 Log(σ) with a correlation coefficient of 0.97. This result support the existence of a linear relationship between fish density and echo energy, but suggest that this line has steeper slope than the regression by the theory of estimating the density of fish schools.

저자
  • 이대재
