분사류의 굴삭성능을 이용하여 해저의 모래속에서 서식하고 있는 패류를 어획할 목적으로 원형과 직사각형의 모형노즐을 제작하여 수조에서 분사노즐의 모래면에 대한 굴삭실험을 한 결과를 요약하면 다음과 같다. 1. 분사노즐에 의한 모래면의 최대 굴삭깊이와 폭은 분사속도와 노즐의 단면적의 크기에 비례하여 직선적으로 증가하며, 노즐의 분사거리에 대해서는 굴삭깊이는 직선적으로 감소하나, 굴삭폭은 직선적으로 증가한다. 2. 직사각형 노즐(폭 1mm)은 단면적이 같은 원형 노즐보다 굴삭성능이 다소 우수하였다. 3. 노즐별 분사각도와 분사속도, 분사거리에 따른 최대 굴삭깊이와 폭에 관한 실험식은 직선식으로 나타나며, 분사각도 45˚에서 직사각형노즐(폭 1mm)의 분사속도와 분사거리에 따른 실험식은 다음과 같다. D=0.0093V 하(0)-0.23H+5.7. W=0.0147V 하(0)+1.06H+10.2. 단, D: 최대 굴삭깊이(cm), V 하(0): 노즐의 분사속도(cm/sec) 926≤V 하(0)≤1504, W: 최대굴삭폭(cm), H: 노즐구멍에서 모래면까지의 거리(cm).

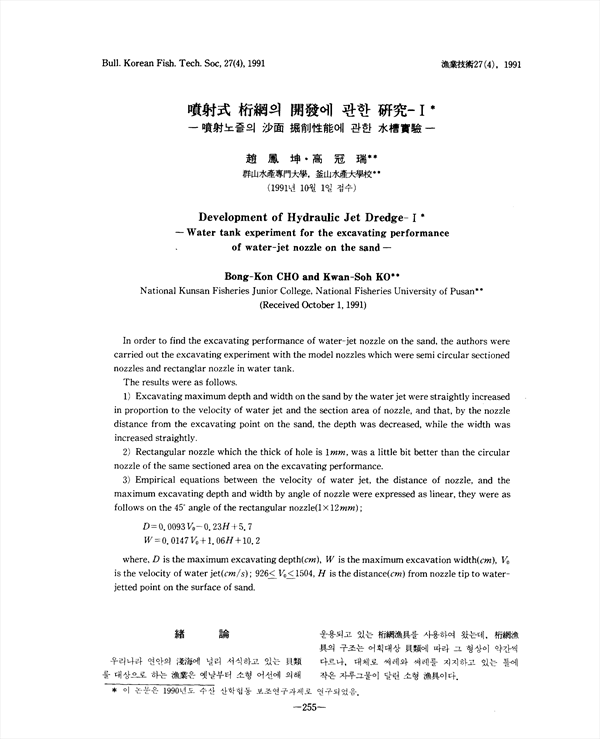

In order to find the excavating performance of water-jet nozzle on the sand, the authors were carried out the excavating experiment with the model nozzles which were semi circular sectioned nozzles and rectangular nozzle in water tank. The results were as follows. 1) Excavating maximum depth and width on the sand by the water jet were straightly increased in proportion to the velocity of water jet and the section area of nozzle, and that, by the nozzle distance from the excavating point on the sand, the depth was decreased, while the width was increased straightly. 2) Rectangular nozzle which the thick of hole is 1mm, was a little bit better than the circular nozzle of the same sectioned area on the excavating performance. 3) Empirical equations between the velocity of water jet, the distance of nozzle, and the maximum excavating depth and width by angle of nozzle were expressed as linear, they were as follows on the 45˚ angle of the rectangular nozzle(1×12mm); D=0.0093V sub(0)-0.23H+5.7. W=0.0147V sub(0)+1.06H+10.2. where, D is the maximum excavating depth(cm), W is the maximum excavation width(cm), V sub(0) is the velocity of water jet(cm/s); 926≤V sub(0)≤1504, H is the distance(cm) from nozzle tip to water-jetted point on the surface of sand.

• 조봉곤 | Jo, Bong-Gon
• 고관서 | Go, Gwan-Seo
