pp.132-143

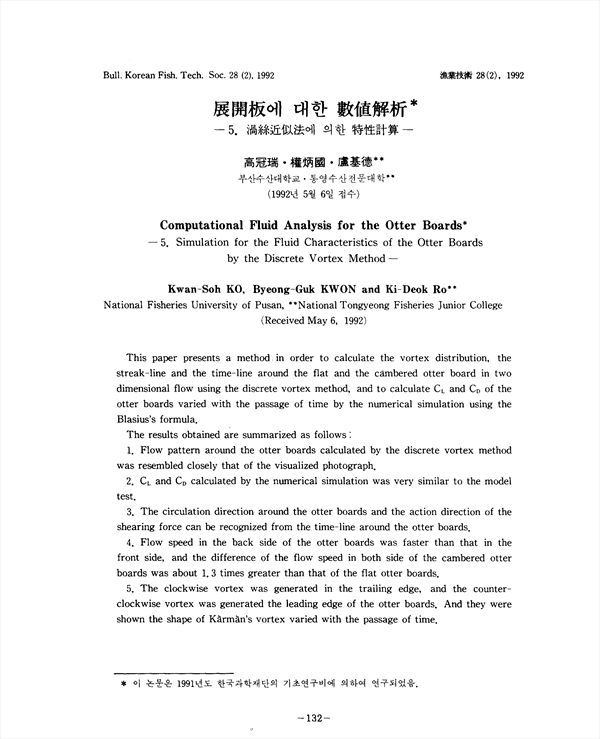

This paper presents a method in order to calculate the vortex distribution, the streak-line and the time-line around the flat and the cambered otter board in two dimensional flow using the discrete vortex method, and to calculate C sub(L) and C sub(D) of the otter boards varied with the passage of time by the numerical simulation using the Blasu's formula. The results obtained are summarized as follows: 1. Flow pattern around the otter boards calculated by the discrete vortex method was resembled closely that of the visualized photograph. 2. C sub(L) and C sub(D) calculated by the numerical simulation was very similar to the model test. 3. The circulation direction around the otter boards and the action direction of the shearing force can be recognized from the time-line around the otter boards. 4. Flow speed in the back side of the otter boards was faster than that in the front side, and the difference of the flow speed in both side of the cambered otter boards was about 1.3 times greater than that of the flat otter boards. 5. The clockwise vortex was generated in the trailing edge, and the counter-clockwise vortex was generated the leading edge of the otter boards. And they were shown the shape of Karman's vortex varied with the passage of time.
