pp.164-170

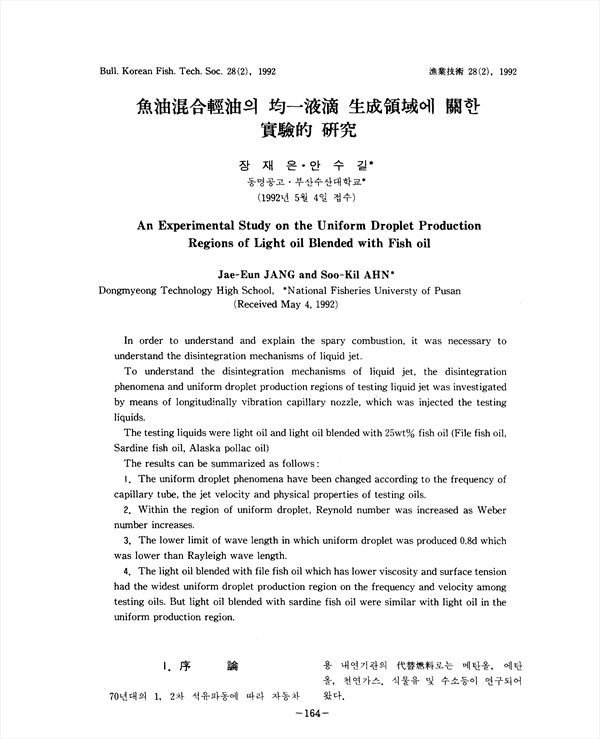

In order to understand and explain the spary combustion, it was necessary to understand the disintegration mechanisms of liquid jet. To understand the disintegration mechanisms of liquid jet, the disintegration phenomena and uniform droplet production regions of testing liquid jet was investigated by means of longitudinally vibration capillary nozzle, which was injected the testing liquids. The testing liquids were light oil and light oil and light oil blended with 25wt% fish oil (File fish oil, Sardine fish oil, Alaska pollac oil) The results can be summarized as follows: 1. The uniform droplet phenomena have been changed according to the frequency of capillary tube, the jet velocity and physical properties of testing oils. 2. Within the region of uniform droplet, Reynold number was increased as Weber number increases. 3. The lower limit of wave length in which uniform droplet was produced 0.8d which was lower than Rayleigh wave length 4. The light oil blended with file fish oil which has lower viscosity and surface tension had the widest uniform droplet production region on the frequency and velocity among testing oils. But light oil blended with sardine fish oil were similar with light oil in the uniform production region.
