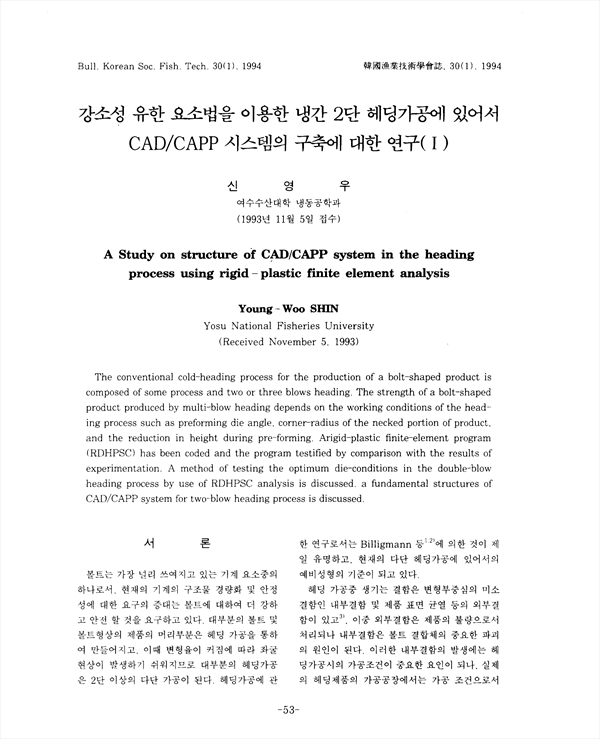

강소성 유한 요소법을 이용한 냉간 2단 헤딩가공에 있어서 CAD / CAPP 시스템의 구축에 대한 연구 1) KCI 등재

A Study on Stucture of CAD / CAPP System in th e Heading Process Using Rigid-Plastic Finite Element Analysis

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/256022
구독 기관 인증 시 무료 이용이 가능합니다. 4,200원
수산해양기술연구 (Journal of the Korean Society of Fisheries and Ocean Technology)
한국수산해양기술학회(구 한국어업기술학회) (The Korean Society of Fisheriers and Ocean Technology)
초록

1) 강소성 유한 요소법 프로그램 RDHPSC는 2단헤딩 가공에 있어서의 신뢰 할 수 있는 해석수단이다. 2) RDHPSC에 의한 2단헤딩의 해석은 2단헤딩가공에서의 최적 가공 조건의 결정에 유용한 정보를 제공할 수 있다. 3) 2단헤딩 가공중의 금속흐름을 수치해석에서의 격자 변형에 의해 관찰될 수 있다. 4) 2단헤딩 가공중의 표면 결함의 발생가능성은 수치해석 결과에서 원수방향응력과 계수 D를 관찰함으로서 탐색되어질 수 있다. 5) 2단헤딩가공중에 있어서의 내부결함 발생가능성은 수치해석의 격차 변형을 통하여 알 수 있다. 6) 마무리 가공금형 수명에 대한 최적가공조건은 수치해석에서의 접촉압력을 조사하여 얻을 수 있다.(이 논문의 결론부분임)

The conventional cold-heading process for the production of a bolt-shaped product is composed of some process and two or three blows heading. The strength of a bolt-shaped product produced by multi-blow heading depends on the working conditions of the heading process such as preforming die angle, corner-radius of the necked portion of product, and the reduction in height during pre-forming. Arigid-plastic finite-element program(RDHPSC) has been coded and the program testified by comparison with the results of experimentation. A method of testing the optimum die-conditions in the double-blow heading process by use of RDHPSC analysis is discussed a fundamental structures of CAD/CAPP system for two-blow heading process is discussed.

저자
  • 신영우
