pp.84-92
군산대학교 실습선 해림 3호의 조종성능을 파악하기 n이하여 GPS 보다 그 측립정도가 더 높은 DGPS를 이용하여 종회권 측정을 행하고, 이를 재래식 측정방법인 부표방입반법과 비교 검토하였으며, 그 결과를 요약하면 다음과 같다. 1. DGPS에 의한 선회권측정의 정도를 파악하기 위하여 육상에서 50m의 선회시험을 행한 결과 측위오차는 1.5m 이내 였다. 2. DGPS에 의한 선회권측정은 속력별, 타각별, 좌우선회별로 각각 그 특성이 잘 나타낼 수 있도록 정확하게 측정 할 수 있었다. 3. 부표방위반법에 의한 선회권측정은 타각을 크게 하여 그 선회권이 작을 때는 DGPS의 것과 같이 비교적 정확하게 측정할 수 있으나, 타각을 작게하여 선회권이 클 때는 방위오차가 크기 때문에 정확하게 측정할 수 없었다. 4. DGPS에 의한 해림 3호의 선회경(DT)은 타각 35。~5。일 때, 미속에서는 선박의 수선간장 (Lpp)상의 2.6~15.0배, 반속에서는 2.8~16.6배, 전속에서는 3.1~17.4배로 나타났었고, 부표방위반법에 의한 선회경은 각각 2.4~9.5배, 2.6~9.6배, 3.2~12.2배로 나타났었다

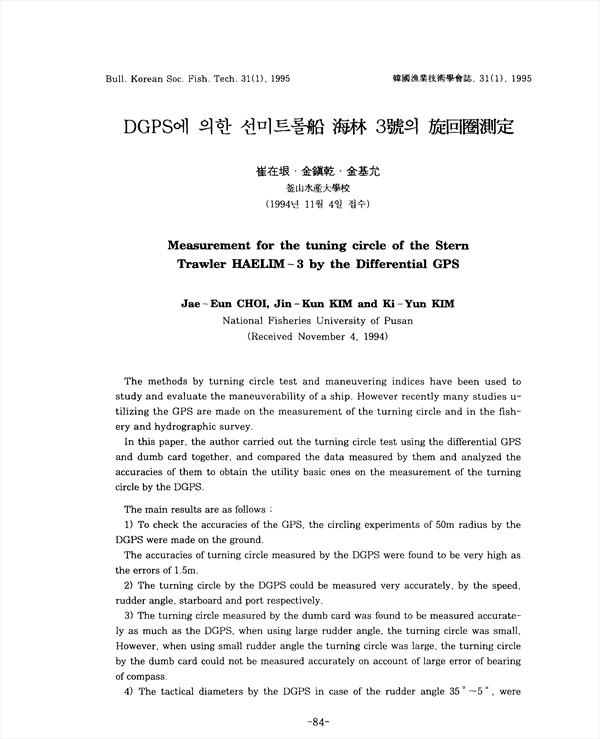

The methods by turning circle test and maneuvering indices have been used to study and evaluate the maneuverability of a ship. However recently many studies utilizing the GPS are made on the measurement of the turning circle and in the fishery and hydrographic survey. In this paper, the author carried out the turning circle test using the differential GPS and dumb card together, and compared the data measured by them and analyzed the accuracies of them to obtain the utility basic ones on the measurement of the turning circle by the DGPS. The main results area s follows : 1) To check the accuracies of the GPS, the circling experiments of 50m radius by the DGPS were made on the ground. The accuracies of turning circle measured by the DGPS were found to be very high as the errors of 1.5m. 2) the turning circle by the DGPS could be measured very accurately, by the seed, rudder angle, starboard and port respectively. 3) The turning circle measured by the dumb card was found to be measured accurately as much as the DGPS, when using large rudder angle, the turning circle was large, the turning circle by the dumb car could not be measured accurately on account of large error of bearing of compass. 4) The tactical diameters by the DGPS in case of the rudder angle 35。~5。, were found to be 2.6。15.0 times the Lpp of S.T HAELIM-3 at her slow speed 2.8~16.6 times her Lpp at her half speed, 3.1~17.4 times her Lpp at her full speed. The tactical diameter by the dumb card was found to be 2.4~9.5 times, 2.6~9.6 times, 3.2~12.2 times her Lpp respectively, in the above case and speed.
