pp.7-15

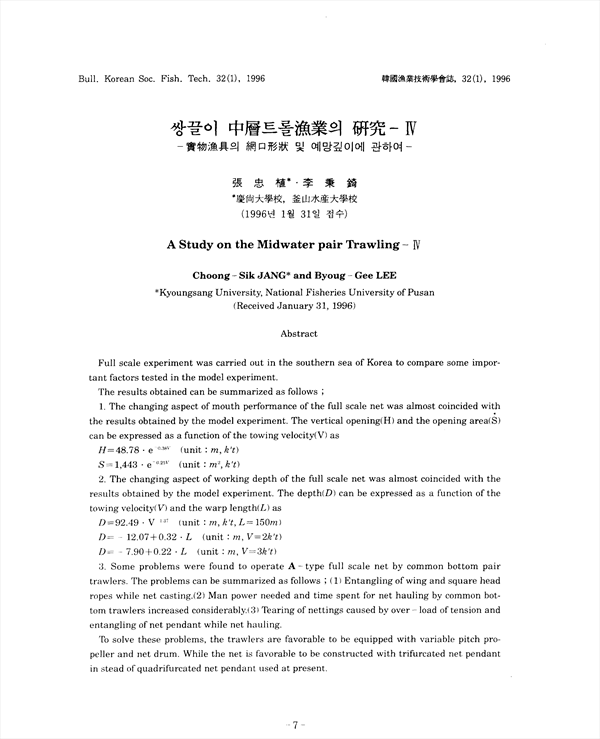

Full scale experiment was carried out in the southern sea of Korea to compare some important factors tested in the model experiment. The results obtained can be summarized as follows ; 1. The changing aspect of mouth performance of the full scale net was almost coincided with the results obtained by the model experiment. The vertical opening(H) and the opening area(S) can be expressed as a function of the towing velocity(V) as H=48.78. e0.38V(unit: m, k't) S= 1,443 .e-0.25V(unit: m2V, k't) 2. The changing aspect of working depth of the full scale net was almost coincided with the results obtained by the model experiment. The depth(D) can be expressed as a function of the towing velocity(V) and the warp length(L) as D=92.49.V1.37(unit: m, k't, L= 150m) D= 12.07+0.32. L (unit: m, V=2k't) [)= - 7.90+0.22 . L (unit: m, V=3k't) 3. Some problems were found to operate A - type full scale net by common bottom pair trawlers. The problems can be summarized as follows; (1) Entangling of wing and square head ropes while net casting.(2) Man power needed and time spent for net hauling by common bottom trawlers increased considerably.( 3) Tearing of nettings caused by over -load of tension and entangling of net pendant while net hauling. To solve these problems, the trawlers are favorable to be equipped with variable pitch propeller and llet drum. While the net is favorable to be constructed with trifurcated net pendant in stead of quadrifurcated net pendant used at present.
