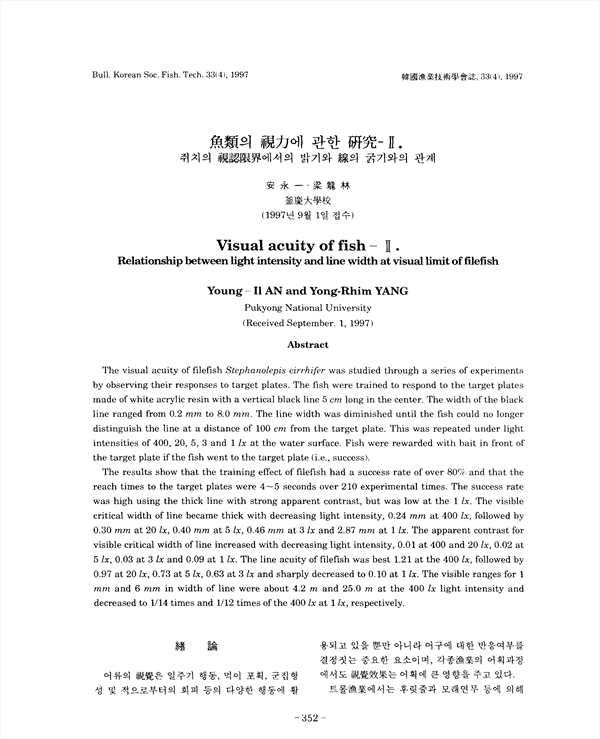

어류의 시각에 관한 연구 - II . 쥐치의 시인한계에서의 밝기와 선의 굵기와의 관계 KCI 등재

Visual acuity of Fish -II. Relationship between light intensity line width at visual limit of filefish

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/256188
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
수산해양기술연구 (Journal of the Korean Society of Fisheries and Ocean Technology)
한국수산해양기술학회(구 한국어업기술학회) (The Korean Society of Fisheriers and Ocean Technology)
초록

쥐치 Stphanolepis cirrhifer의 선시력을 구하기 위하여, 표적물거리 100cm, 광환경 5가지(400,20,3,1,lx)및 표적물의 굵기(8.0~0.2mm)12가지 조건하에서 행동학적 수법으로 조사한 결과는 다음과 같다. 1. 쥐치의 학습교과는 실험회수가 210회이상에서 시인율이 80%이상이였고, 도달시간이 4~5초로 안정되었따. 2. 시인율은 표적물의 굵기가 굵고 겉보기 콘트라스트가 클 때 높았으나, 1lx이하에서는 대체로 낮았다. 3. 시인한계선의굴기는 밝기가 감소함에 따라 굵었는데, 400lx의 경우가 0.24m로 가장 가늘고, 다음으로 20lx인 경우 0.30mm, 5lx인 경우 0.40mm, 3lxmm, 5lx인 경우가 2.87mm로 가장 굵었다. 4. 시인한계선의 굵기에 대한 겉보기 콘트라스트는 밝기가 감소함에 따라 증가하였는데, 400lx와 20lx인 경우 0.01로 가장 작았으며, 5lx와 3lx인 경우는 각각 0.02와 0.03이였으며, 1lx의 경우가 0.09로 가장 컸다. 5. 쥐치의 선시력은 400lx의 경우가 1.21로 가장 좋았고, 다음으로 20lx인 경우 0.97, 5lx인 경우 0.73, 3lx인 경우 0.63으로 밝기가 감소함에 따라 감소하였고, 특히 1lx의 경우가 0.10로 현저距하게 감소하였다. 6. 표적물의 굵기 1mm와 6mm에 대한 시인거리는 밝기 400lx하에서 각각 약 4.2m와 25.0m였으나, 1lx인 경우는 400lx의 1/14과 1/12로 감소하였다.

The visual acuity of filefish Stephanolepis cirrhifer was studied through a series of experiments by observing their responses to target plates. The fish were trained to respond to the target plates made of white acrylic resin with a vertical black line 5cm long in the center. The width of the black line ranged from 0.2mm to 8.0 mm. The line width was diminished unto the fish could no longer distinguish the line at a distance of 100 cm from the target plate. This was repeated under light intensities of 400, 20, 5, 3 and 1 lx at the water surface. Fish were rewarded with bait in front of the target plate if the fish went to the target date (i.e., success).The results show that the training effect of 1lensh had a success rate of over 80% and that the reach times to the target plates were 4~5 seconds over 210 experimental tunes. The success rate was high using the thick line with strong apparent contrast, but was low at the 1 lx. The visible critical width of line became thick with decreasing light intensity, 0.24mm at 400 lx, followed by 0.30mm at 20 lx, 0.40mm at 5 lx, 0.46 mm at 3 lx and 2.87mm at 1 lx. The apparent contrast for visible critical width of line increased with decreasing light intensity, 0.01 at 400 and 20 lx, 0.02 at 5 lx, 0.03 at 3 lx and 0.09 at 1 lx. The line acuity of filefish was best 1.21 at the 400 lx, followed by 0.97 at 20 lx, 0.73 at 5 lx, 0.63 at 3 lx and sharply decreased to 0.10 at 1 lx. The visible ranges for 1mm and 6mm in width of line were about 4.2 m and 25.0 m at the 400 lx light intensity and decreased m 1/14 times and 1/12 times of the 400 lx at 1 lx, respectively.

저자
  • 안영일 | An, Yeong-Il
  • 양용림 | Yang, Yong-Rim
