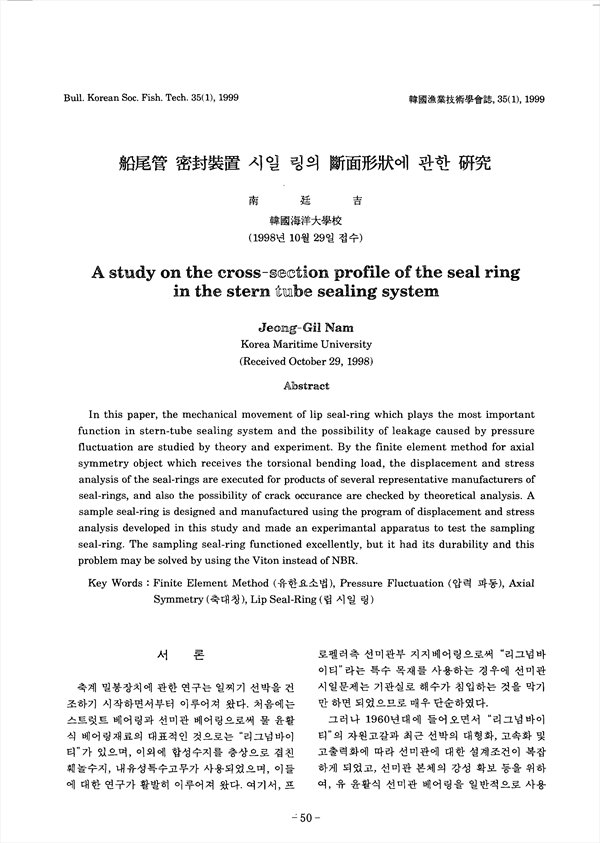

In this paper, the mechanical movement of lip seal-ring which plays the most important function in stern-tube sealing system and the possibility of leakage caused by pressure fluctuation are studied by theory and experiment. By the finite element method for axial symmetry object which receives the torsional bending load, the displacement and stress analysis of the seal-rings are executed for products of several representative manufacturers of seal-rings, and also the possibility of crack occurance are checked by theoretical analysis. A sample seal-ring id designed and manufactured using the program of displacement and stress analysis developed in this study and made an experimental apparatus to test the sampling seal-ring. The sampling seal-ring functioned excellently, but it had its durability and this problem may be solved by using the Viton instead of NBR.

• 남정길
