어구 크기를 대폭적으로 줄이면서 어획성능을 향상시킨 어구를 개량하고 조업자동화를 이룩할 수 있도록 하기 위하여 신광수산에서 사용하고 있는 실물어구를 가지고 양선간격 및 예망속도의 변화에 따른 해상실험을 통하여 어구 각부의 망고와 수중형상을 측정·분석한 결과를 요약하면 다음과 같다. 1. 실물어구 각 부분의 망고는 양선간격과 예망속도가 증가함에 따라 낮아지는 경향을 보였다. 2. 실물어구의 양선간격에 따른 오비기, 수비, 앞창, 자루 입구, 깔때기와 자루 뒤끝의 망고는 각각 8.4∼6.6, 17.4∼15.7, 17.9∼12.9, 19.0∼l3.6, 8.4∼8.3, 14.7∼11.1m이었고, 각 부분의 전개율은 16∼12, 24∼22, 38∼27, 83∼59, 93∼92, 54∼41%로 나타났다. 3. 실물어구의 예망속도에 따른 오비기, 수비, 앞창, 자루 입구, 깔때기, 자루 뒤끝의 망고는 각각 10.5∼7.7, 21.6∼l9.6, 16.9∼15.2, 17.1∼15.4, 8.2∼8.0, 14.7∼13.7m이었고, 각 부분의 전개율은 각각 19∼14, 30∼27, 36∼32, 74∼67, 91∼89, 54∼51%로 나타났다. 4. 오비기의 망고가 매우 낮게 형성되어 수비와 앞창의 망고가 불안정하고 극히 낮은 전개율로 인하여 포켓현상이 매우 뚜렷하게 나타났다. 5. 실물어구의 예망깊이는 양선간격과 예망속도의 증가에 따라 약간씩 말아지는 현상을 보였는데, 뜸줄 쪽보다는 발줄 쪽이 더 뚜렷하였다.

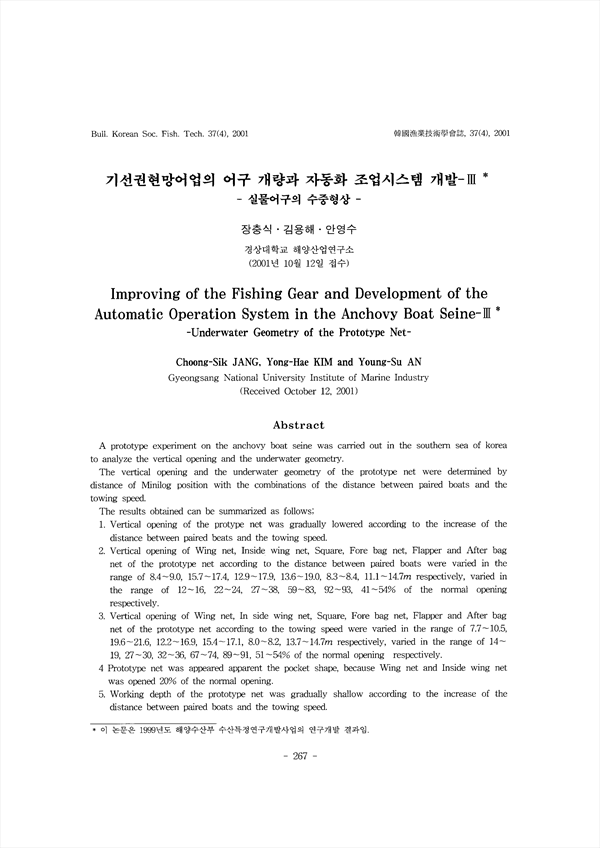

A prototype experiment on the anchovy boat seine was carried out in the southern sea of korea to analyze the vertical opening and the underwater geometry. The vertical opening and the underwater geometry of the prototype net were determined by distance of Minilog position with the combinations of the distance between paired boats and the towing speed. The results osbtained can be summarized as follows; 1. Vertical opening of the protype net was gradually lowered according to the increase of the distance between paired beats and the towing speed. 2. Vertical opening of Wing net, Inside wing net, Square, Fore bag net, Flapper and After bag net of the prototype net according to the distance between paired boats were varied in the range of 8.4~9.0, 15.7~17.4, 12.9~17.9, 13.6~19.0, 8.3~8.4, 11.1~14.7m respectively, varied in the range of 12~16, 22~24, 27~38, 59~83, 92~93, 41~54% of the normal opening respectively. 3. Vertical opening of Wing net, In side wing net, Square, Fore bag net, Flapper and After bag net of the prototype net according to the towing speed were varied in the range of 7.7~10.5, 19.6~21.6, 12.2~16.9, 15.4~17.1, 8.0~8.2, 13.7~14.7m respectively, varied in the range of 14~19, 27~30, 32~36, 67~74, 89~91, 51~54% of the normal opening respectively. 4. Prototype net was appeared apparent the pocket shape, because Wing net and Inside wing net was opened 20% of the normal opening. 5. Working depth of the prototype net was gradually shallow according to the increase of the distance between paired boats and the towing speed.

• 장충식
• 김용해
• 안영수
