pp.17-26
본 연구는 현용 정치망에서 나타나는 급조시의 심한 망형상과, 그물의 파망 및 유실에 의한 조업부진 등의 문제점을 해결하기 위해 일본의 근해어장용 양식 가두리시설에서 사용한 부가중량추의 이용방법을 도입하여 국내 정치망으로의 적용할 가능성을 검토하였다. 그 결과를 요약하면 다음과 같다. 1. 운동장이 흐름의 조상측인 경우, 부가중량추의 무게가 1.3~5.2gf으로 증가할 때 장력은 기준형보다 약 10~25% 증가하였다. 부착위치에 따라서는 A-type과 B-type은 기준형과 비슷하였고, C-type과 D-type은 기준형보다 약 10~15% 증가하였다. 2. 부가중량추의 무게가 1.3~5.2gf으로 증가할 때 운동장 섶장의 기울기 변화량은 약 0~70˚, 비탈그물의 섶장은 약 0~64˚, 조하측인 제 2원통의 섶장은 약 0~46˚까지였고, 유속이 0.0~0.6m/s로 증가할 때 제1원통고 제2원통 까래의 깊이는 정조시 보다 약 50% 감소하였다. 3. 부가중량추의 부착위치에 따른 운동장 섶장의 깊이는 A-type은 기준형보다 약 25%, B-type은 약 10% 감소하였고, C-type은 기준형과 비슷하고, D-type은 약 15% 증가하였다. 비탈그물의 까래의 깊이는 A-type이 가장 깊었고, 다음으로 B-type, C-type, D-type 순이었다. 제2원통 까래의 깊이는 4종류의 실험망이 기준형 보다 약 10~15% 증가하였다. 유속이 0.0~0.6m/s로 증가할 때 비탈그물의 섶장의 기울기 변화량은 약 0~63˚, 제2원통 섶장의 기울기 변화량은 약 0~44˚이었다. 4. 부가중량추의 적정 무게는 약 2.6~3.6gf이었고, 적정 부착위치는 부가중량추와 연결부분인 그물자락사이 연결줄의 길이가 약 300mm인 C-type과 연결줄 없이 직접 부착한 D-type이었다.

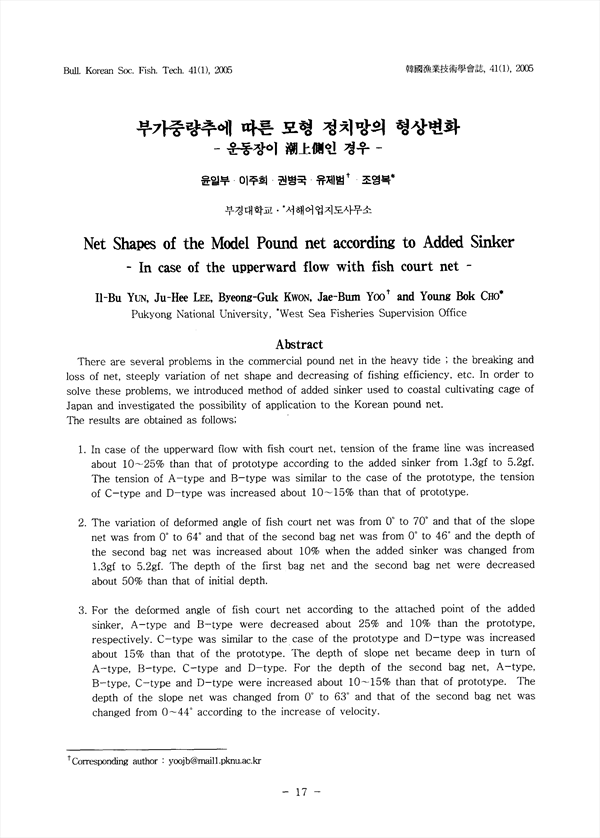

There are several problems in the commercial pound net in the heavy tide ; the breaking and loss of net, steeply variation of net shape and decreasing of fishing efficiency, etc. In order to solve these problems, we introduced method of added sinker used to coastal cultivating cage of Japan and investigated the possibility of application to the Korean pound net. The results are obtained as follows; 1. In case of the upperward flow with fish court net, tension of the frame line was increased about 10~25% than that of prototype according to the added sinker from 1.3gf to 5.2gf. The tension of A-type and B-type was similar to the case of the prototype, the tension of C-type and D-type was increased about 10~15% than that of prototype. 2. The variation of deformed angle of fish court net was from 0˚ to 70˚ and that of the slope net was from 0˚ to 64˚ and that of the second bag net was from 0˚ to 46˚ and the depth of the second bag net was increased about 10% when the added sinker was changed from 1.3gf to 5.2gf. The depth of the first bag net and the second bag net were decreased about 50% than that of initial depth. 3. For the deformed angle of fish court net according to the attached point of the added sinker, A-type and B-type were decreased about 25% and 10% than the prototype, respectively. C-type was similar to the case of the prototype and D-type was increased about 15% than that of the prototype. The depth of slope net became deep in turn of A-type, B-type, C-type and D-type. For the depth of the second bag net, A-type, B-type, C-type and D-type were increased about 10~15% than that of prototype. The depth of the slope net was changed from 0˚ to 63˚ and that of the second bag net was changed from 0~44˚ according to the increase of velocity. 4. The optimal weight of added sinker was about 2.6~3.6gf and the optimal attached point of added sinker was the case of C-type and D-type.
