논문 상세보기

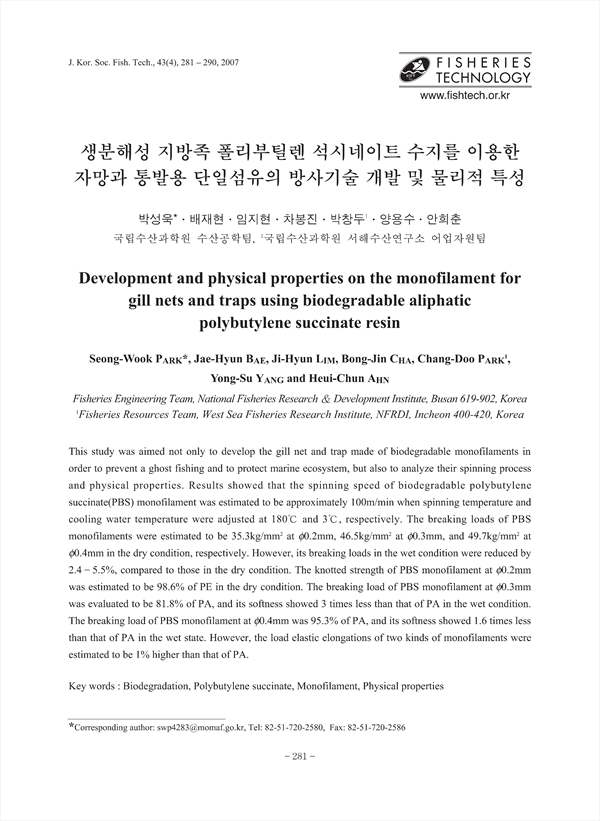

생분해성 지방족 폴리부틸렌 석시네이트 수지를 이용한 자망과 통발용 단일섬유의 방사기술 개발 및 물리적 특성 KCI 등재
Development and physical properties on the monofilament for gill nets and traps using biodegradable aliphatic polybutylene succinate resin
pp.281-290
This study was aimed not only to develop the gill net and trap made of biodegradable monofilaments in order to prevent a ghost fishing and to protect marine ecosystem, but also to analyze their spinning process and physical properties. Results showed that the spinning speed of biodegradable polybutylene succinate(PBS) monofilament was estimated to be approximately 100m/min when spinning temperature and cooling water temperature were adjusted at 180℃ and 3℃, respectively. The breaking loads of PBS monofilaments were estimated to be 35.3kg/mm2 at Φ0.2mm, 46.5kg/mm2 at Φ0.3mm, and 49.7kg/mm2 at Φ0.4mm in the dry condition, respectively. However, its breaking loads in the wet condition were reduced by 2.4-5.5%, compared to those in the dry condition. The knotted strength of PBS monofilament at Φ0.2mm was estimated to be 98.6% of PE in the dry condition. The breaking load of PBS monofilament at Φ0.3mm was evaluated to be 81.8% of PA, and its softness showed 3 times less than that of PA in the wet condition. The breaking load of PBS monofilament at Φ0.4mm was 95.3% of PA, and its softness showed 1.6 times less than that of PA in the wet state. However, the load elastic elongations of two kinds of monofilaments were estimated to be 1% higher than that of PA.
