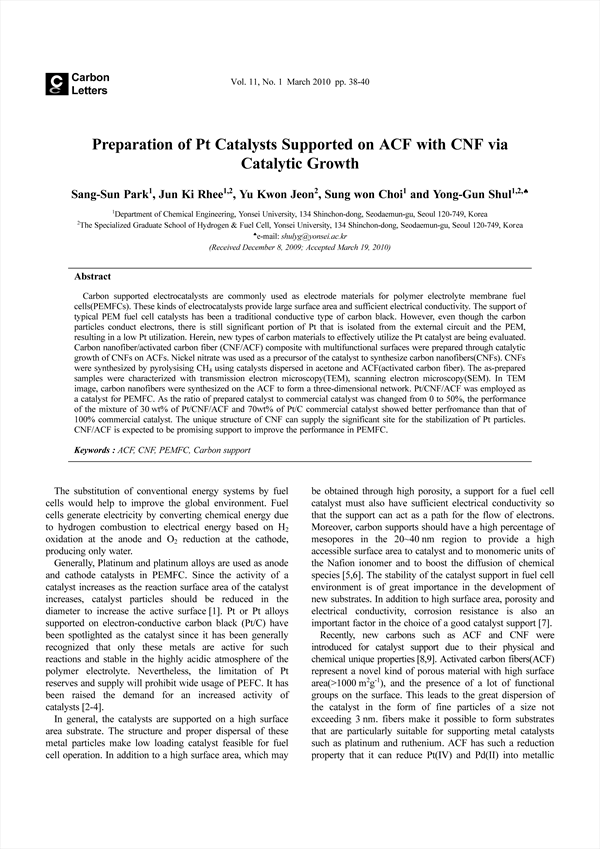

Preparation of Pt Catalysts Supported on ACF with CNF via Catalytic Growth KCI 등재

  • 언어ENG
  • URLhttps://db.koreascholar.com/Article/Detail/259784
구독 기관 인증 시 무료 이용이 가능합니다. 3,000원
Carbon Letters (Carbon letters)
한국탄소학회 (Korean Carbon Society)
초록

Carbon supported electrocatalysts are commonly used as electrode materials for polymer electrolyte membrane fuel cells(PEMFCs). These kinds of electrocatalysts provide large surface area and sufficient electrical conductivity. The support of typical PEM fuel cell catalysts has been a traditional conductive type of carbon black. However, even though the carbon particles conduct electrons, there is still significant portion of Pt that is isolated from the external circuit and the PEM, resulting in a low Pt utilization. Herein, new types of carbon materials to effectively utilize the Pt catalyst are being evaluated. Carbon nanofiber/activated carbon fiber (CNF/ACF) composite with multifunctional surfaces were prepared through catalytic growth of CNFs on ACFs. Nickel nitrate was used as a precursor of the catalyst to synthesize carbon nanofibers(CNFs). CNFs were synthesized by pyrolysising CH4 using catalysts dispersed in acetone and ACF(activated carbon fiber). The as-prepared samples were characterized with transmission electron microscopy(TEM), scanning electron microscopy(SEM). In TEM image, carbon nanofibers were synthesized on the ACF to form a three-dimensional network. Pt/CNF/ACF was employed as a catalyst for PEMFC. As the ratio of prepared catalyst to commercial catalyst was changed from 0 to 50%, the performance of the mixture of 30 wt% of Pt/CNF/ACF and 70wt% of Pt/C commercial catalyst showed better perfromance than that of 100% commercial catalyst. The unique structure of CNF can supply the significant site for the stabilization of Pt particles. CNF/ACF is expected to be promising support to improve the performance in PEMFC.

저자
  • Sang-Sun Park(Department of Chemical Engineering, Yonsei University)
  • Jun-Ki Rhee(Department of Chemical Engineering, Yonsei University, The Specialized Graduate School of Hydrogen & Fuel Cell, Yonsei University)
  • Yu-Kwon Jeon(The Specialized Graduate School of Hydrogen & Fuel Cell, Yonsei University)
  • Sung-Won Choi(Department of Chemical Engineering, Yonsei University)
  • Yong-Gun Shul(Department of Chemical Engineering, Yonsei University, The Specialized Graduate School of Hydrogen & Fuel Cell, Yonsei University)
