pp.87-98

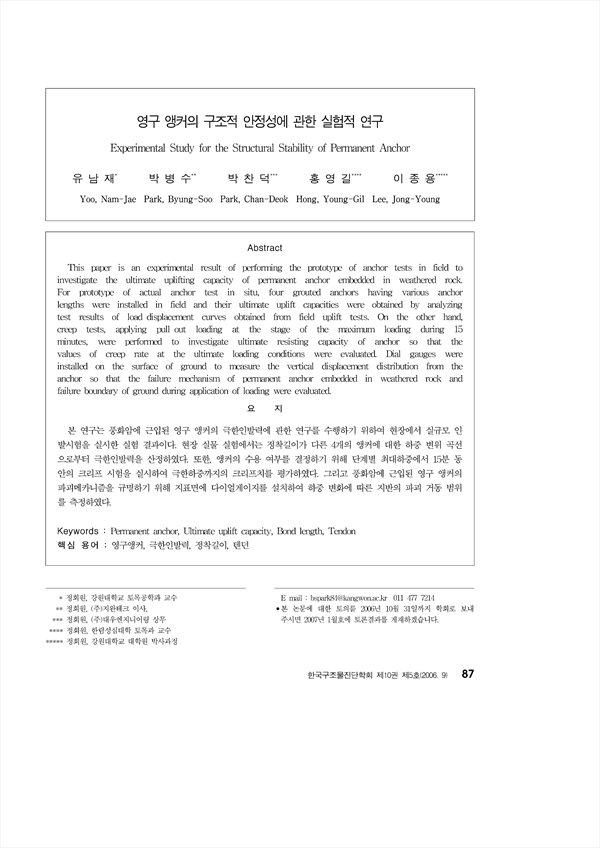

본 연구는 풍화암에 근입된 영구 앵커의 극한인발력에 관한 연구를 수행하기 위하여 현장에서 실규모 인발시험을 실시한 실험 결과이다. 현장 실물 실험에서는 정착길이가 다른 4개의 앵커에 대한 하중-변위 곡선으로부터 극한인발력을 산정하였다. 또한, 앵커의 수용 여부를 결정하기 위해 단계별 최대하중에서 15분 동안의 크리프 시험을 실시하여 극한하중까지의 크리프치를 평가하였다. 그리고 풍화암에 근입된 영구 앵커의 파괴메카니즘을 규명하기 위해 지표면에 다이얼게이지를 설치하여 하중 변화에 따른 지반의 파괴 거동 범위를 측정하였다.
This paper is an experimental result of performing the prototype of anchor tests in field to investigate the ultimate uplifting capacity of permanent anchor embedded in weathered rock. For prototype of actual anchor test in situ, four grouted anchors having various anchor lengths were installed in field and their ultimate uplift capacities were obtained by analyzing test results of load-displacement curves obtained from field uplift tests. On the other hand, creep tests, applying pull-out loading at the stage of the maximum loading during 15 minutes, were performed to investigate ultimate resisting capacity of anchor so that the values of creep rate at the ultimate loading conditions were evaluated. Dial gauges were installed on the surface of ground to measure the vertical displacement distribution from the anchor so that the failure mechanism of permanent anchor embedded in weathered rock and failure boundary of ground during application of loading were evaluated.
