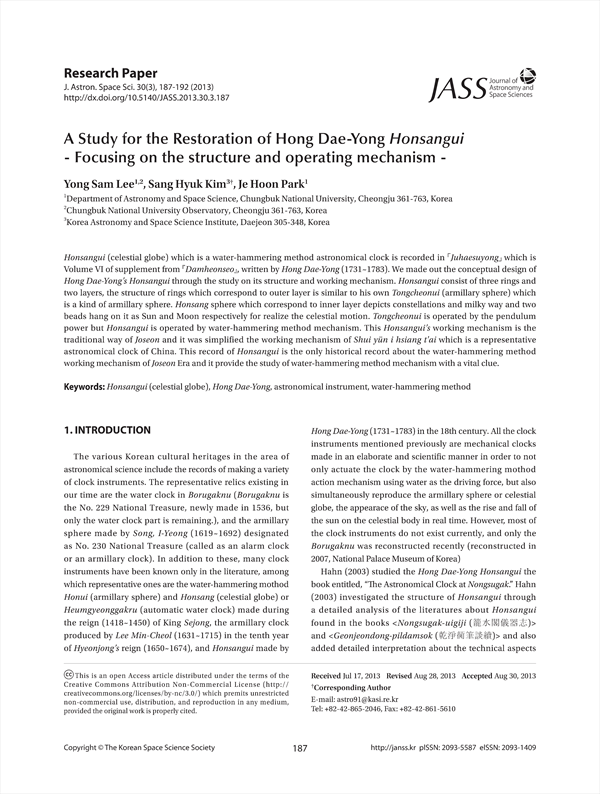

Honsangui (celestial globe) which is a water-hammering method astronomical clock is recorded in 「Juhaesuyong」 which is Volume VI of supplement from 『Damheonseo』, written by Hong Dae-Yong (1731~1783). We made out the conceptual design of Hong Dae-Yong’s Honsangui through the study on its structure and working mechanism. Honsangui consist of three rings and two layers, the structure of rings which correspond to outer layer is similar to his own Tongcheonui (armillary sphere) which is a kind of armillary sphere. Honsang sphere which correspond to inner layer depicts constellations and milky way and two beads hang on it as Sun and Moon respectively for realize the celestial motion. Tongcheonui is operated by the pendulum power but Honsangui is operated by water-hammering method mechanism. This Honsangui’s working mechanism is the traditional way of Joseon and it was simplified the working mechanism of Shui yün i hsiang t'ai which is a representative astronomical clock of China. This record of Honsangui is the only historical record about the water-hammering method working mechanism of Joseon Era and it provide the study of water-hammering method mechanism with a vital clue.

• Lee, Yong Sam(Department of Astronomy and Space Science, Chungbuk National University)
• Kim, Sang Hyuk( Korea Astronomy and Space Science Institute) | Kim, Sang Hyuk
• Park, Je Hoon( Department of Astronomy and Space Science, Chungbuk National University) | Park, Je Hoon
