논문 상세보기
pp.277-285

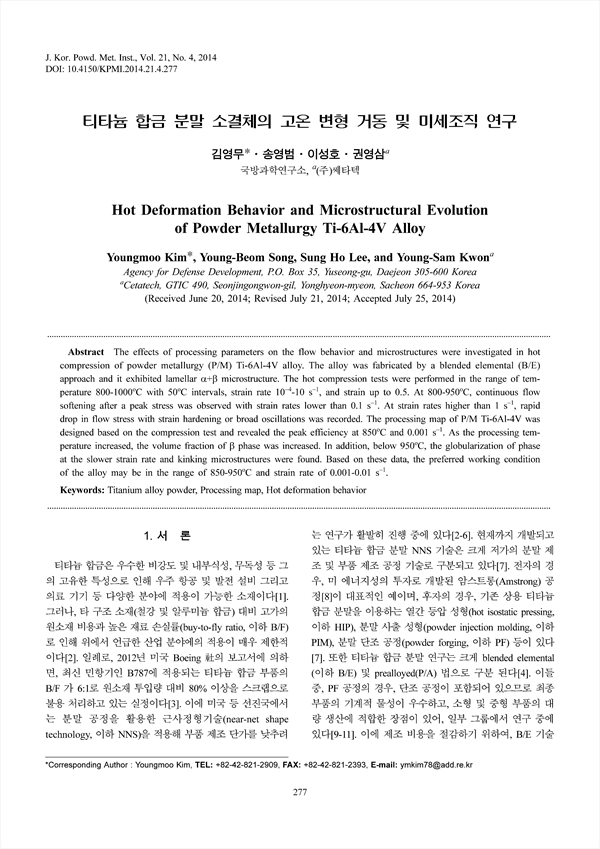

The effects of processing parameters on the flow behavior and microstructures were investigated in hotcompression of powder metallurgy (P/M) Ti-6Al-4V alloy. The alloy was fabricated by a blended elemental (B/E)approach and it exhibited lamellar α+β microstructure. The hot compression tests were performed in the range of tem-perature 800-1000℃ with 50℃ intervals, strain rate 10−4-10 s−1, and strain up to 0.5. At 800-950℃, continuous flowsoftening after a peak stress was observed with strain rates lower than 0.1 s−1. At strain rates higher than 1 s−1, rapiddrop in flow stress with strain hardening or broad oscillations was recorded. The processing map of P/M Ti-6Al-4V wasdesigned based on the compression test and revealed the peak efficiency at 850℃ and 0.001 s−1. As the processing tem-perature increased, the volume fraction of β phase was increased. In addition, below 950℃, the globularization of phaseat the slower strain rate and kinking microstructures were found. Based on these data, the preferred working conditionof the alloy may be in the range of 850-950℃ and strain rate of 0.001-0.01 s−1.
