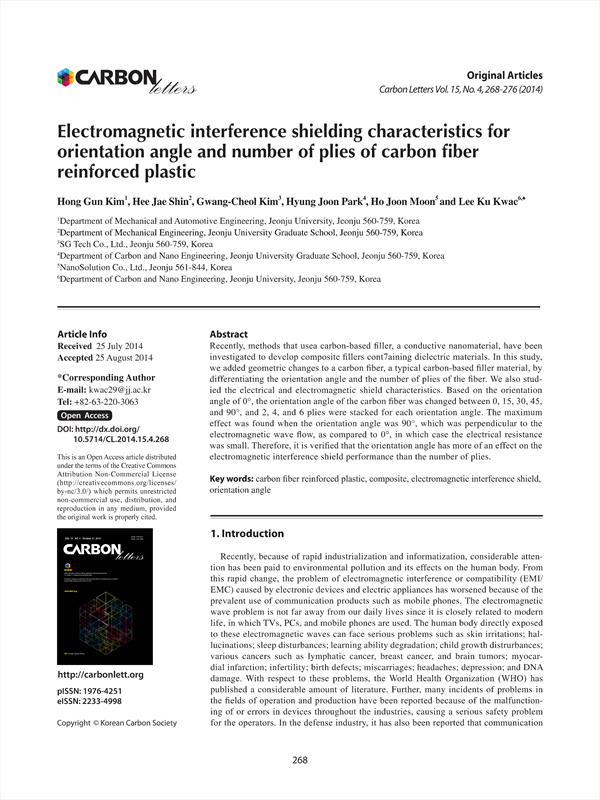

Electromagnetic interference shielding characteristics for orientation angle and number of plies of carbon fiber reinforced plastic KCI 등재

  • 언어ENG
  • URLhttps://db.koreascholar.com/Article/Detail/283206
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
Carbon Letters (Carbon letters)
한국탄소학회 (Korean Carbon Society)
초록

Recently, methods that usea carbon-based filler, a conductive nanomaterial, have been investigated to develop composite fillers containing dielectric materials. In this study, we added geometric changes to a carbon fiber, a typical carbon-based filler material, by differentiating the orientation angle and the number of plies of the fiber. We also studied the electrical and electromagnetic shield characteristics. Based on the orientation angle of 0˚, the orientation angle of the carbon fiber was changed between 0, 15, 30, 45, and 90˚, and 2, 4, and 6 plies were stacked for each orientation angle. The maximum effect was found when the orientation angle was 90˚, which was perpendicular to the electromagnetic wave flow, as compared to 0˚, in which case the electrical resistance was small. Therefore, it is verified that the orientation angle has more of an effect on the electromagnetic interference shield performance than the number of plies.

목차
 Abstract  1. Introduction  2. Measurement of EMI  3. Experiment Results and Discussion  3. Conclusions  Acknowledgements  References
저자
  • Kim, Hong Gun(Department of Mechanical and Automotive Engineering, Jeonju University)
  • Shin, Hee Jae( Department of Mechanical Engineering, Jeonju University Graduate School) | Shin, Hee Jae
  • Kim, Gwang-Cheol( SG Tech Co., Ltd) | Kim, Gwang-Cheol
  • Park, Hyung Joon( Department of Carbon and Nano Engineering, Jeonju University Graduate School) | Park, Hyung Joon
  • Moon, Ho Joon( NanoSolution Co., Ltd) | Moon, Ho Joon
  • Kwac, Lee Ku( Department of Carbon and Nano Engineering, Jeonju University) | Kwac, Lee Ku
